TX1320 M4 Upgrade and Maintenance Manual 65
Basic hardware procedures
4.8.2 Installing the 2.5-inch HDD cage

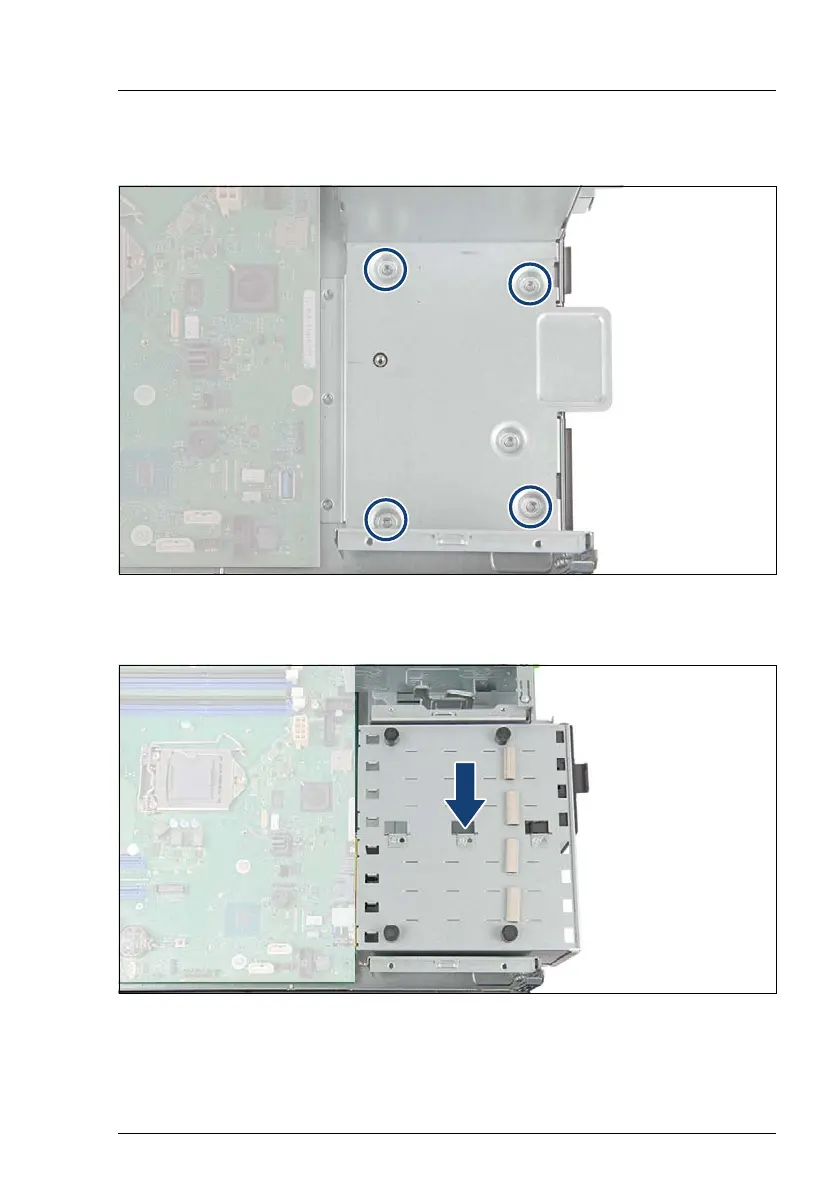

Figure 18: Recesses for the HDD cage (A)
Ê Note the designated recesses for the HDD cage (see circles).
Figure 19: Installing the HDD cage (A)
Ê Put the HDD cage with its rubber feet into the designated recesses (see
arrow).
