142 Upgrade and Maintenance Manual TX1320 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.4.2 Configuration with up to eight HDD/SSD modules

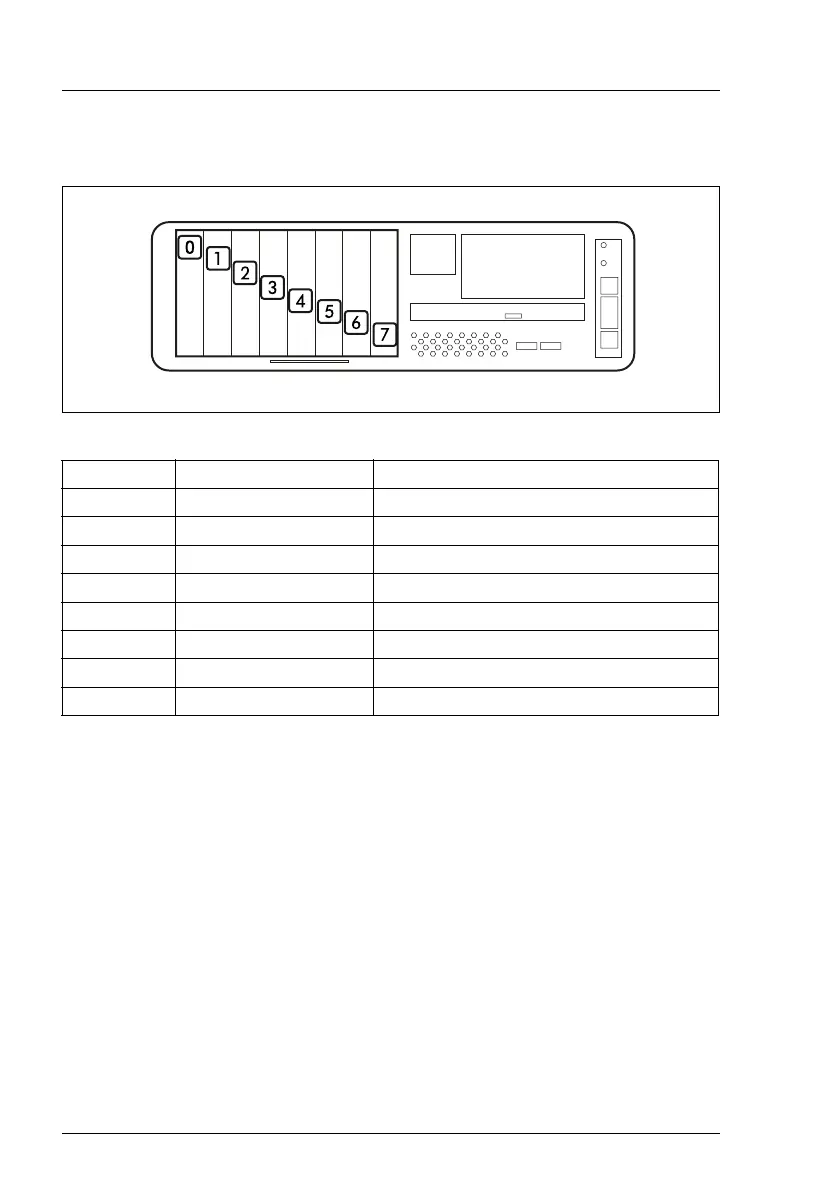

Figure 58: Configuration with up to eight 2.5-inch HDDs/SSDs
I f a server system has been configured without any HDDs, keep the HDD
bay marked with “Test” free for test purposes. During hardware checks,
a HDD will be installed into this bay. Afterwards this HDD is replaced by
a HDD dummy module.
Position Logical drive number ServerView RAID Manager display name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
