System board and components

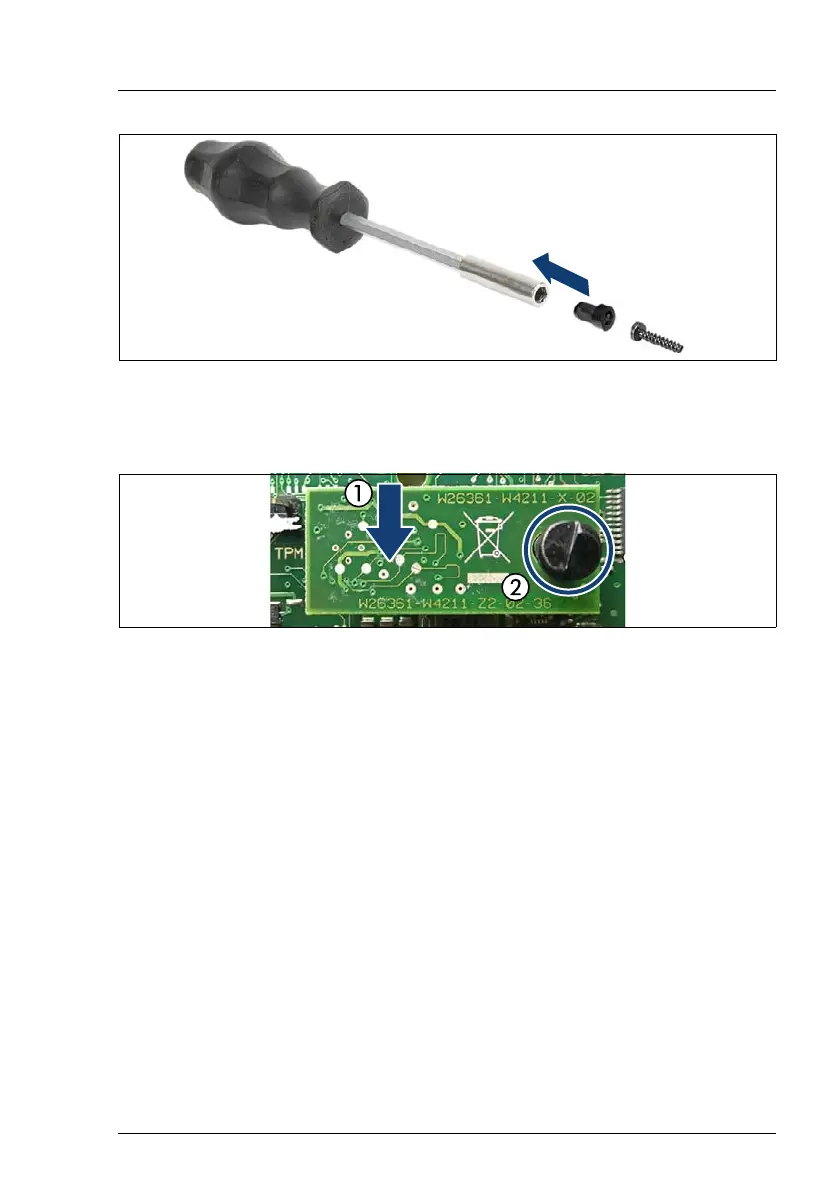

Figure 167: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.
Figure 168: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm, the
description of this torque value doesn't apply to Japan).
14.3.1.3 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
Ê "Resuming BitLocker functionality" on page 87
