TX1320 M4 Upgrade and Maintenance Manual 133
Hard disk drives (HDD) and solid state drives (SSD)
7.3 3.5-inch HDD configurations
7.3.1 Configuration with up to two 3.5-inch HDDs

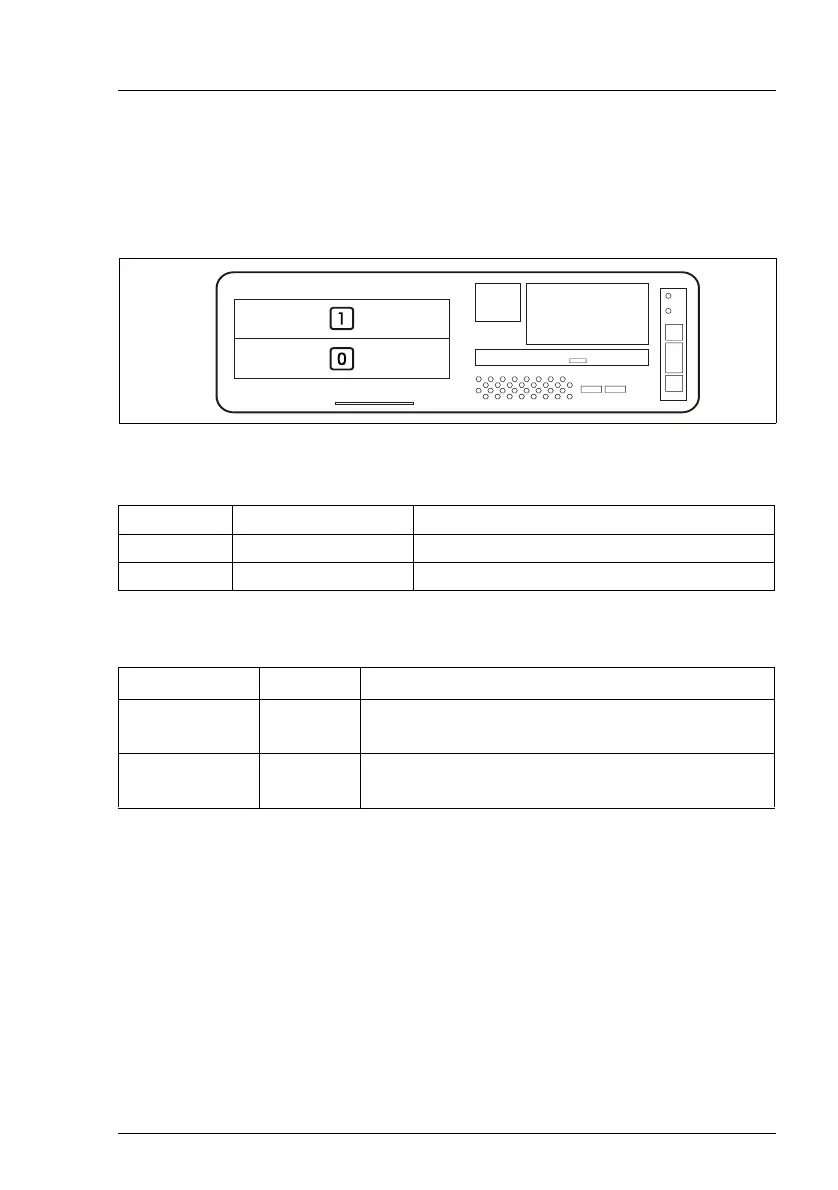

Figure 51: Configuration with up to two 3.5-inch HDDs
The HDD numbering as listed in the ServerView RAID Manager:
SAS connectivity
I For the cable plan, see chapter "Appendix B" on page 341.
Position Logical drive number ServerView RAID Manager display name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
Controller Channel Connection
Onboard SATA 1
Connect the mSAS connector of the SATA Y-
cable to system board connector "SATA1-4.
SAS controller 1
Connect the mSAS connector of the SATA Y-
cable to SAS controller connector "MLC1".
