154 Upgrade and Maintenance Manual TX1320 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.4.7.3 Installing a HDD/PCIe backplane

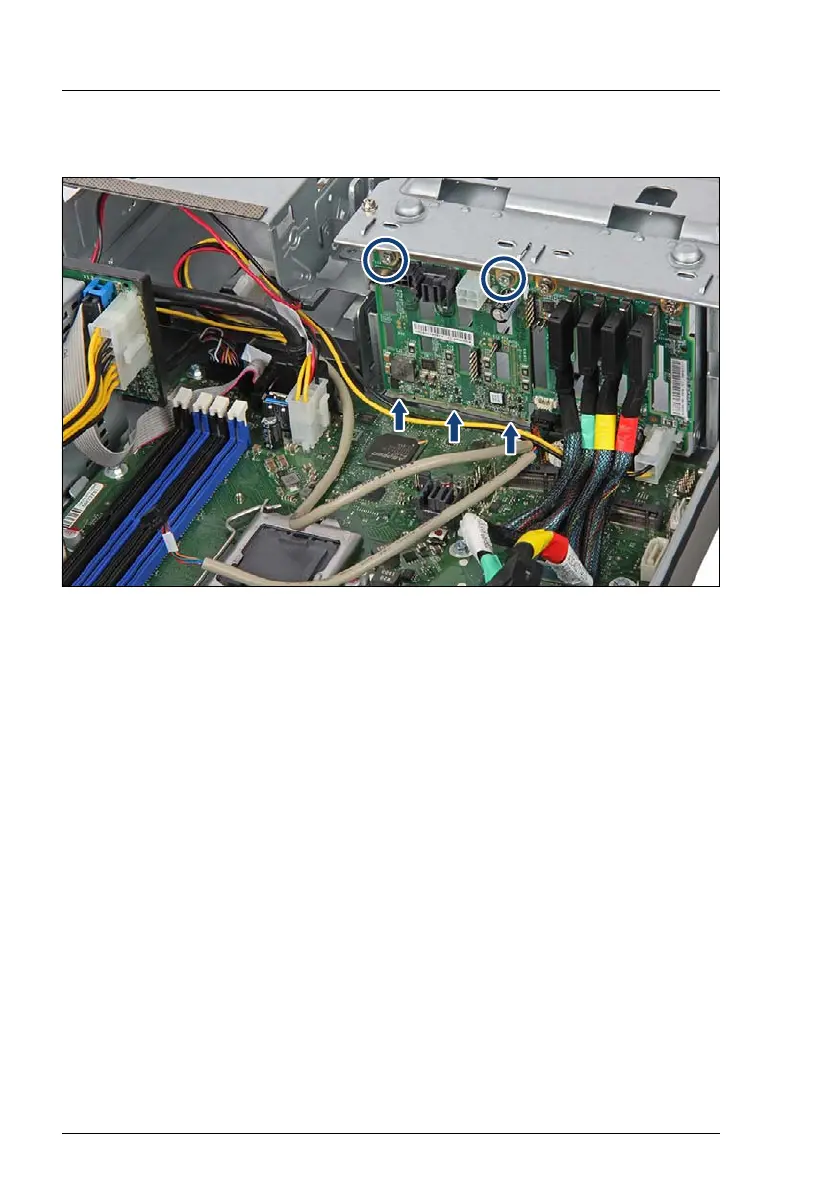

Figure 66: Example: Installing the HDD backplane 2
Ê Insert the HDD backplane in the three hooks on the bottom of the HDD cage
(see arrows).
Ê Fasten the HDD backplane with two screws (see circles).
