Hard disk drives (HDD) and solid state drives (SSD)

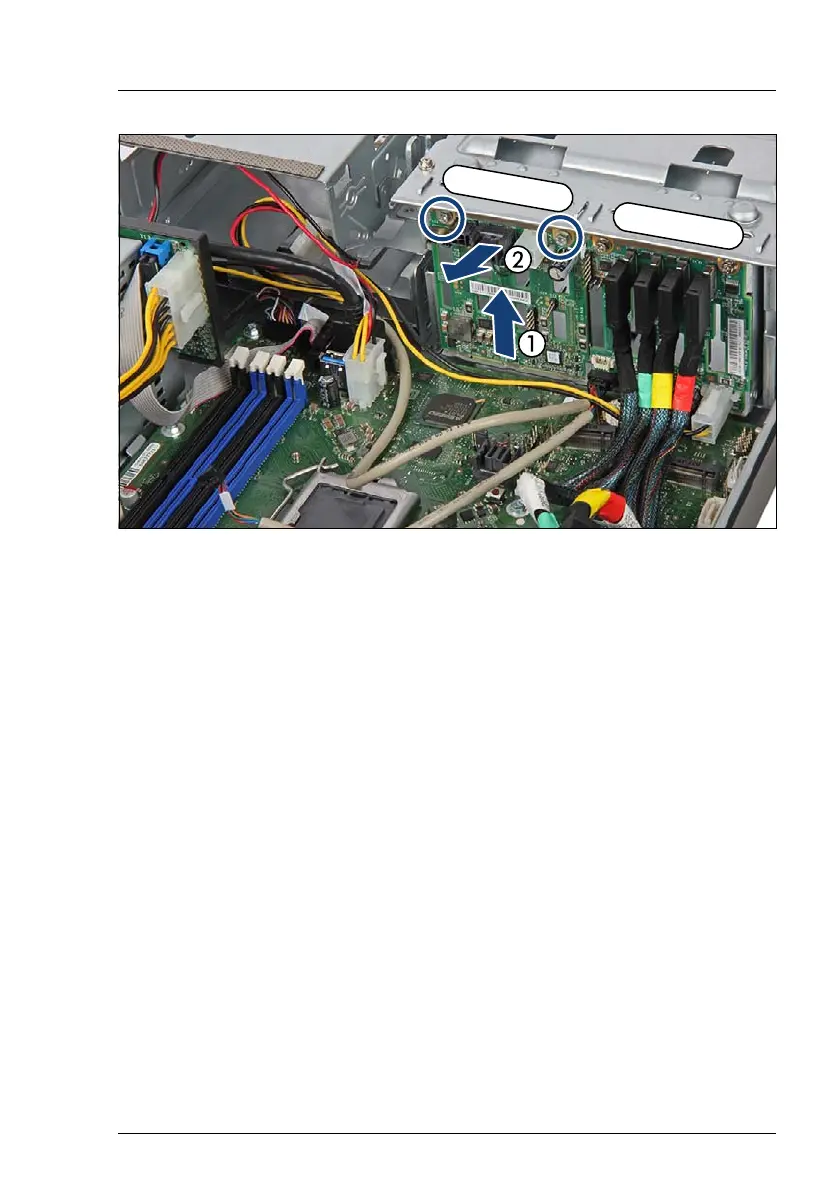

Figure 65: Example: Removing the HDD backplane 2
Ê Remove the two screws (see circles).
Ê Lift the HDD backplane up (1) and remove it from the HDD cage (2).
backplane 1
backplane 2
