224 Upgrade and Maintenance Manual TX1320 M4
11.2.5 Installing the CPU
Ê Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
Ê If applicable, remove the protective cap from the bottom side of the CPU.

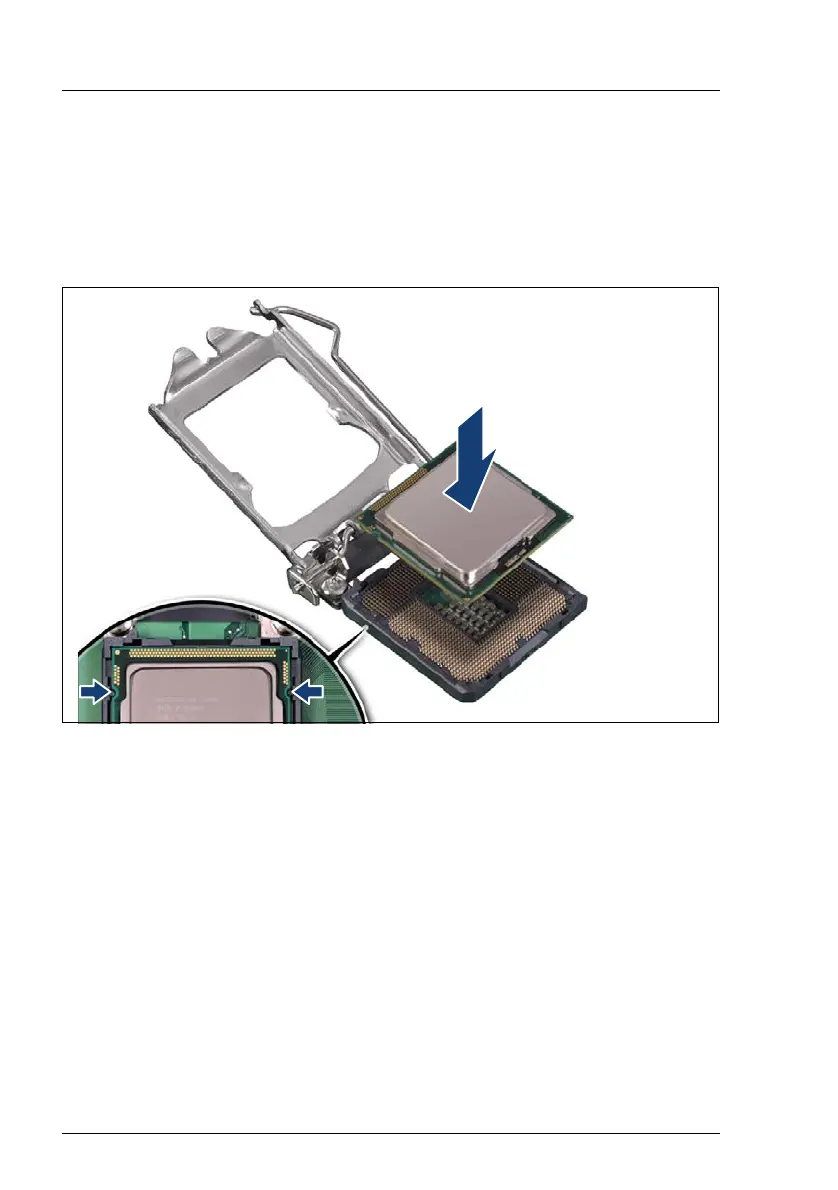

Figure 123: Installing the CPU
Ê Hold the CPU with your thumb and index finger.
Ê Ensure that the notches on the CPU align with the posts on the socket (see
close-up).
Ê Lower the CPU straight down without tilting or sliding it in the socket.
V CAUTION!
– Ensure that the CPU is level in the socket.
– Be careful not to touch or bend the pins on the CPU socket.
– Never touch the underside of the CPU. Even minor soiling such
as grease from the skin can impair the CPU’s operation or destroy
the CPU.
– Ensure not to scrape or dent the CPU edges.
