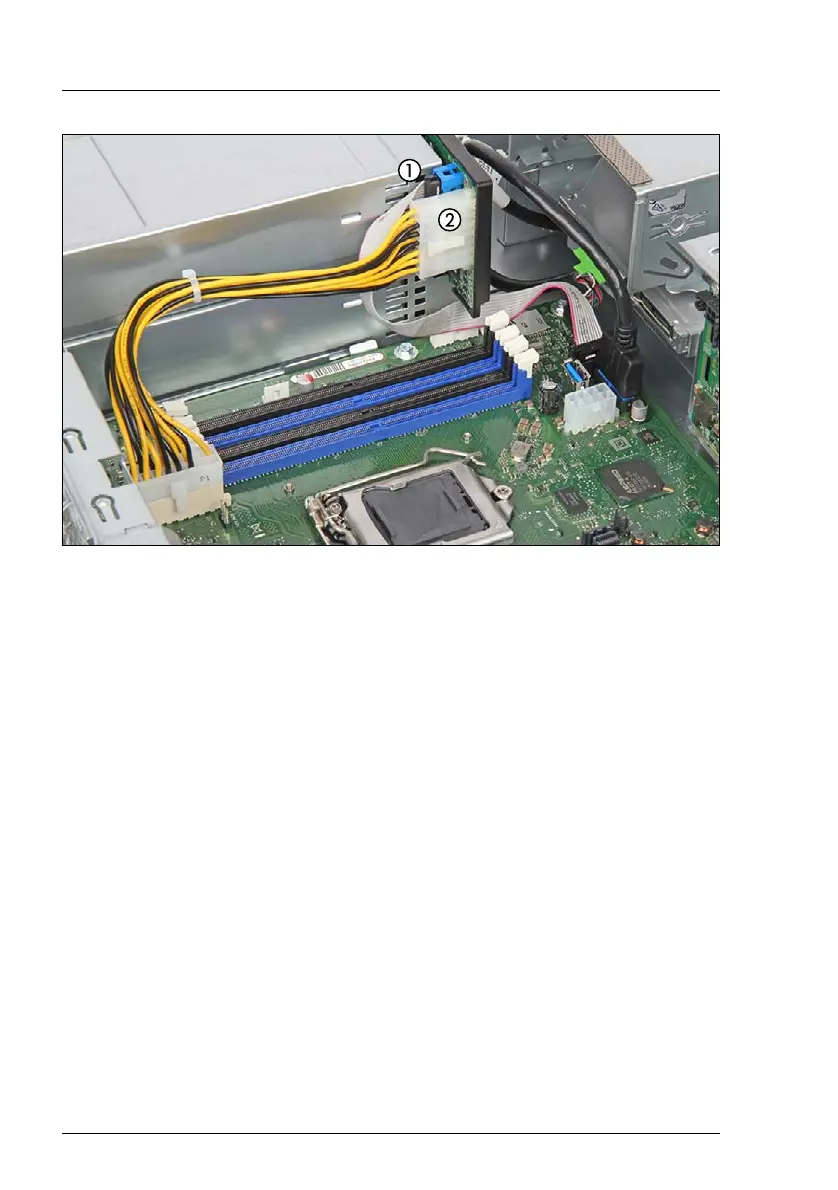

Figure 40: Connecting the power distribution board
Ê Connect the cables to the power distribution board:
I For the cable plans, see chapter "Appendix B" on page 341.
Ê Install the PSUs, see section "Installing a hot-plug PSU" on page 105.
6.3.4.4 Concluding steps
Ê If applicable, install the RDX drive, see section "Installing the RDX drive" on
page 251.
Ê If applicable, install the ODD, see section "Installing the ODD" on page 241.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
Ê "Resuming BitLocker functionality" on page 87
1 PSU signal cable
2 PSU power cable
