TX1320 M4 Upgrade and Maintenance Manual 115
Power supply unit (PSU)

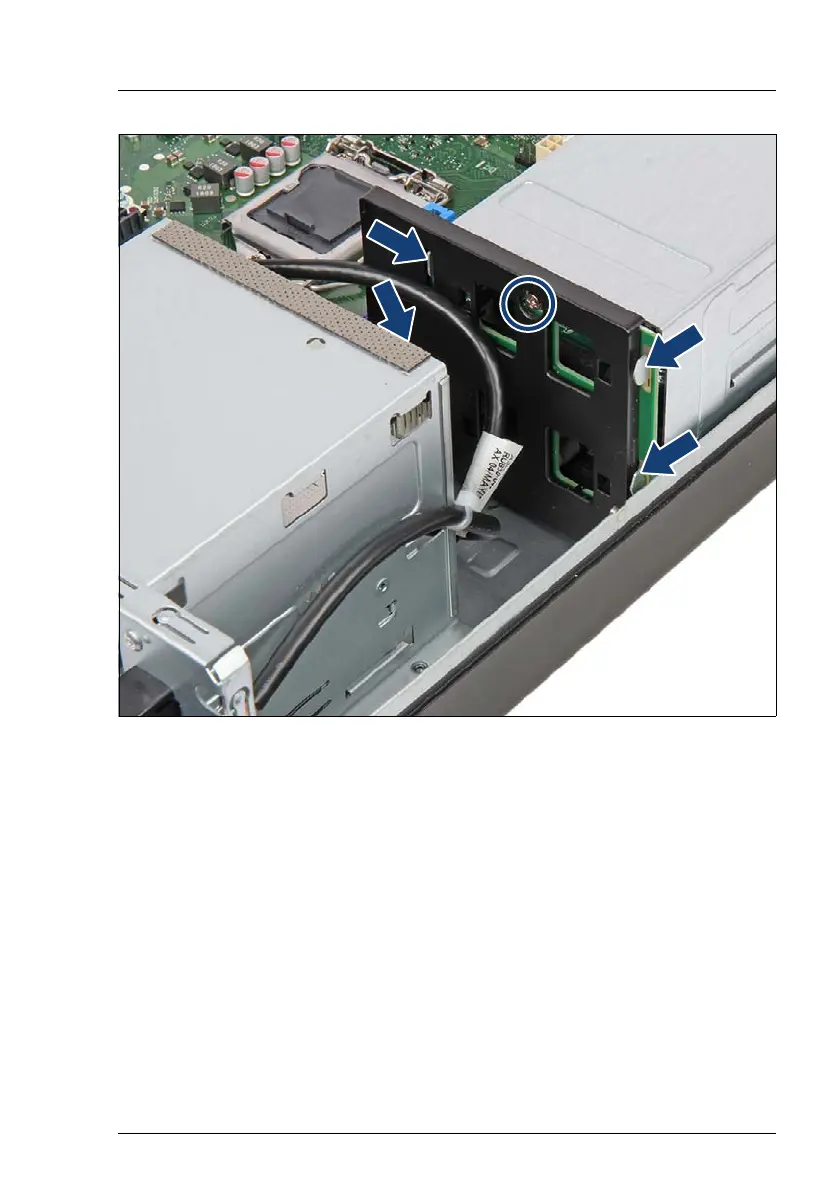

Figure 39: Installing the power distribution board (A)
Ê Hook the power distribution board in the hooks at both sides of the PSU
cage (see arrows).
Ê Fasten the power distribution board through the empty drive bay with one
screw (see circle).
