TX1320 M4 Upgrade and Maintenance Manual 55
Basic hardware procedures

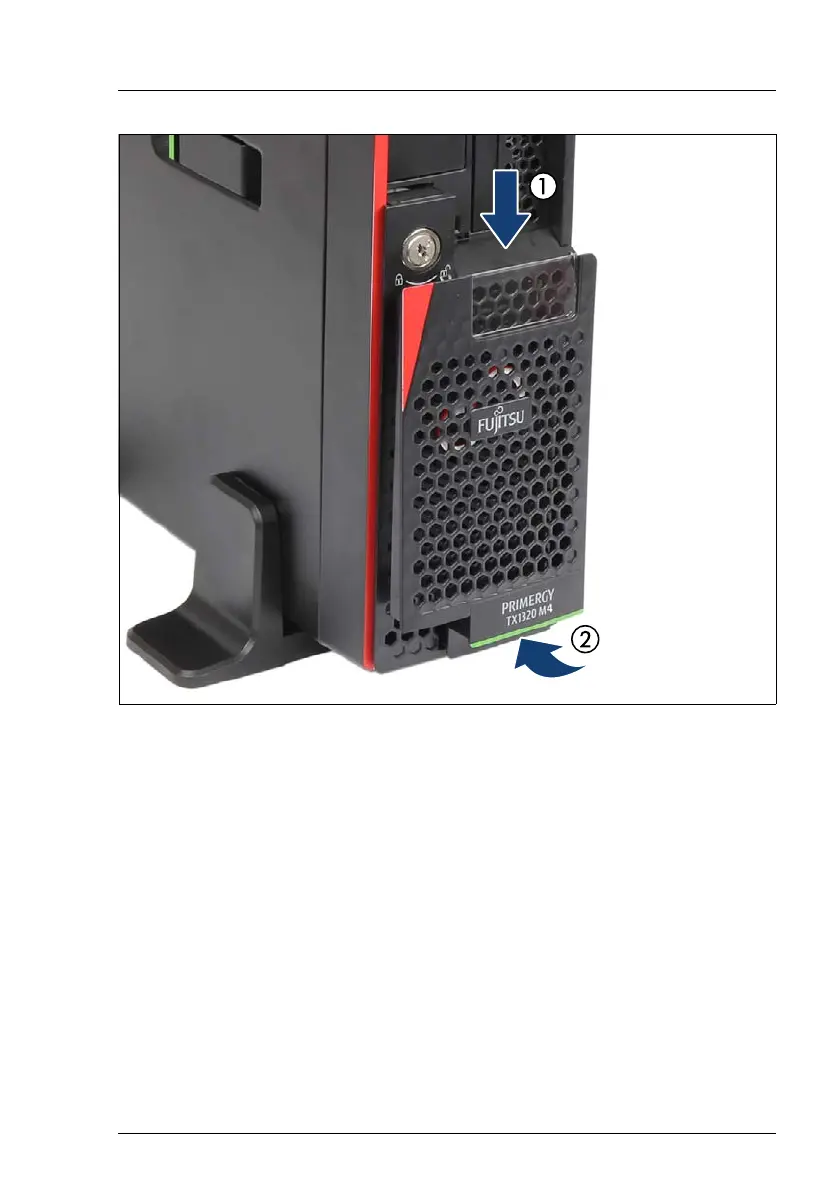

Figure 8: Placing the accessible drive bay cover in front of the HDD bay cover
Ê Place the accessible drive bay cover on the HDD bay cover (1).
Ê Push the accessible drive bay cover in the direction of the arrow.
I When operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
