TX1320 M4 Upgrade and Maintenance Manual 53
Basic hardware procedures

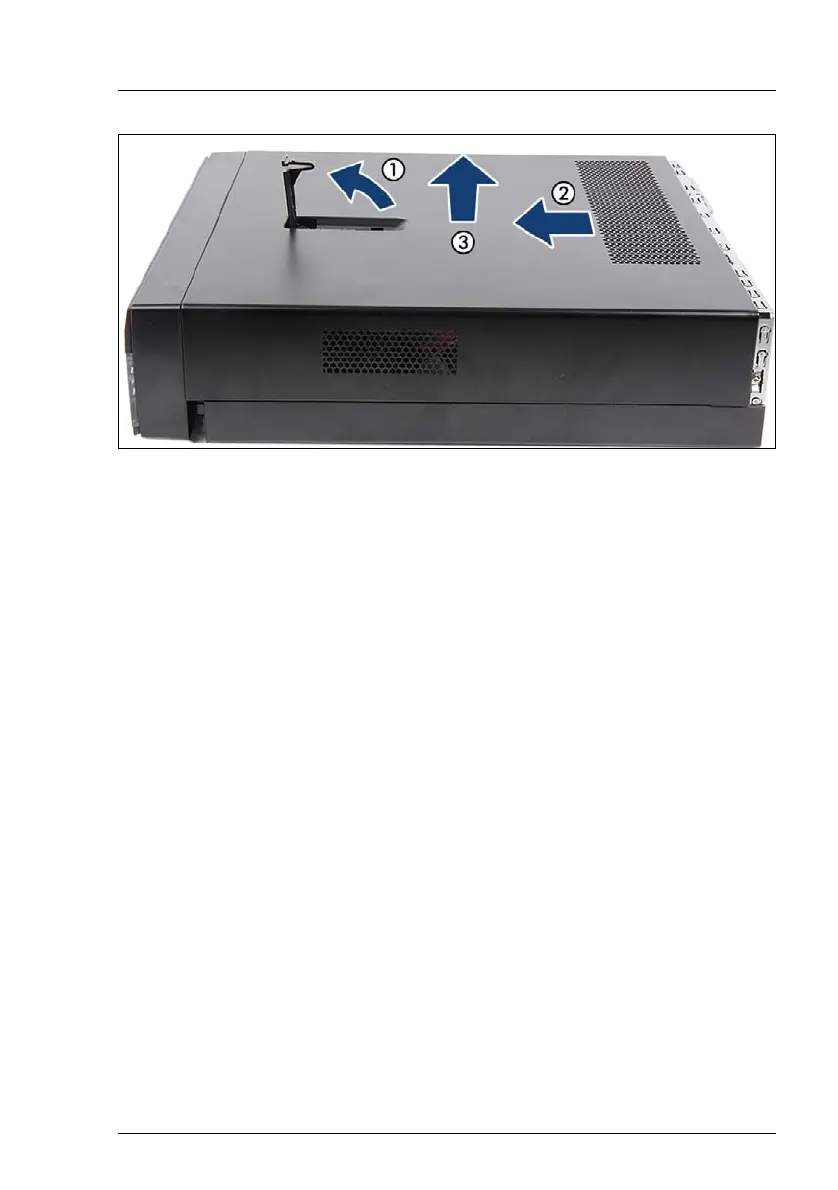

Figure 6: Removing the server cover
Ê Open the locking lever up (1).
Ê Slide the server cover towards the front as far as it will go (2).
Ê Remove the server cover in a vertical motion (3).
