TX1320 M4 Upgrade and Maintenance Manual 113

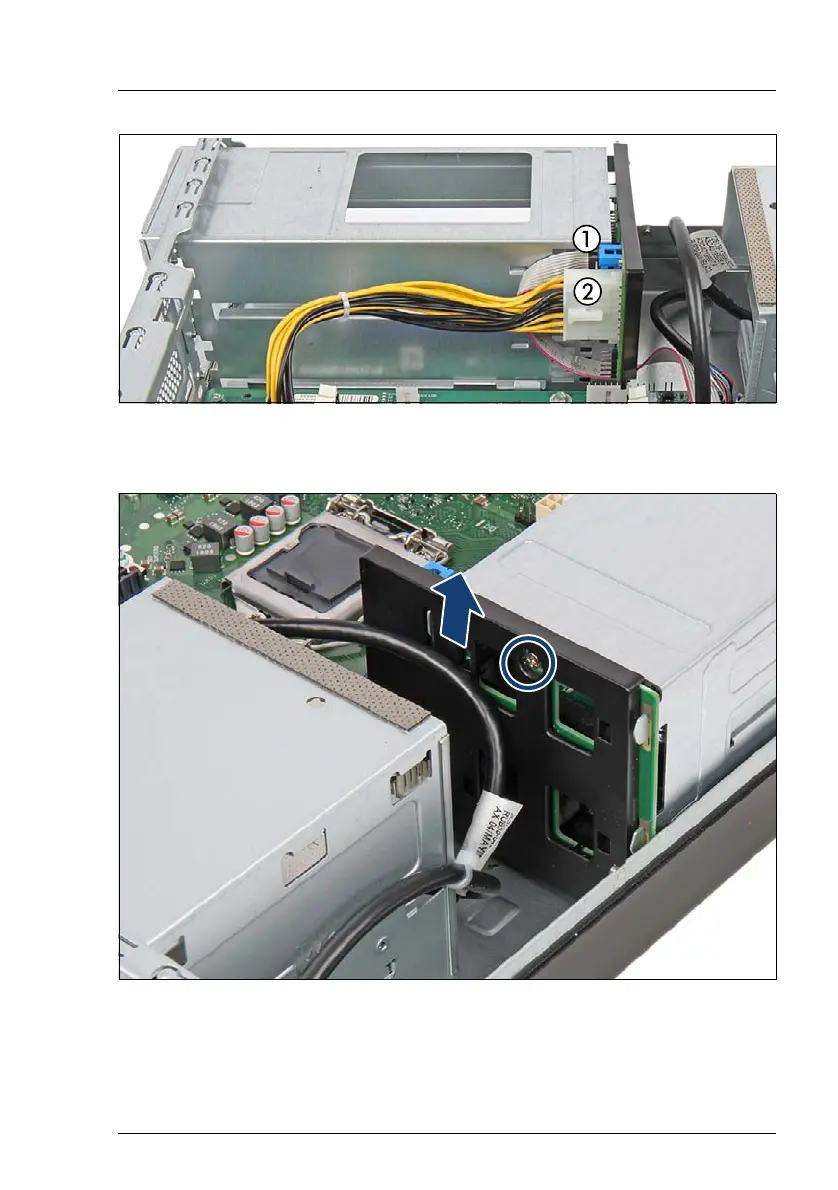

Figure 36: Disconnecting cables from the power distribution board
Ê Disconnect all cables from the power distribution board (1, 2).
Figure 37: Removing the power distribution board
Ê Remove one screw through the empty bay (see circle).
Ê Remove the power distribution board upwards (see arrow).
