136 Upgrade and Maintenance Manual TX1320 M4
Hard disk drives (HDD) and solid state drives (SSD)

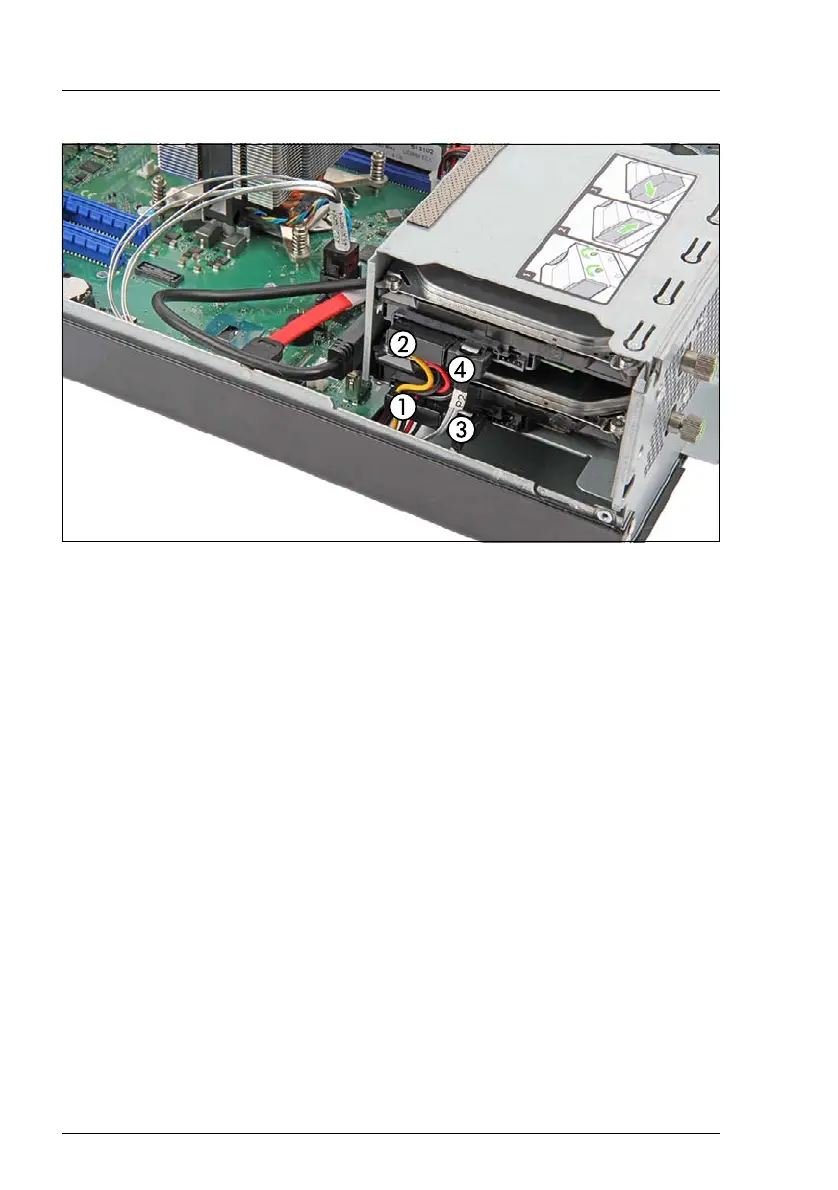

Figure 54: Connecting the 3.5-inch non hot-plug HDD(s)
Ê Connect the power cable(s) to the HDD(s):
Ê If applicable, place the free connectors in a empty bay.
Ê Connect the SATA cable(s) to the HDD(s):
Ê If applicable, remove the protective cap from the mSAS connector of the
SATA Y-cable.
I For the cable plan, see chapter "Appendix B" on page 341.
1 The last but one connector to the lower HDD
2 The last connector to the upper HDD
3 Connector "P1" to the lower HDD
4 Connector "P2" to the upper HDD
