Expansion cards and backup units

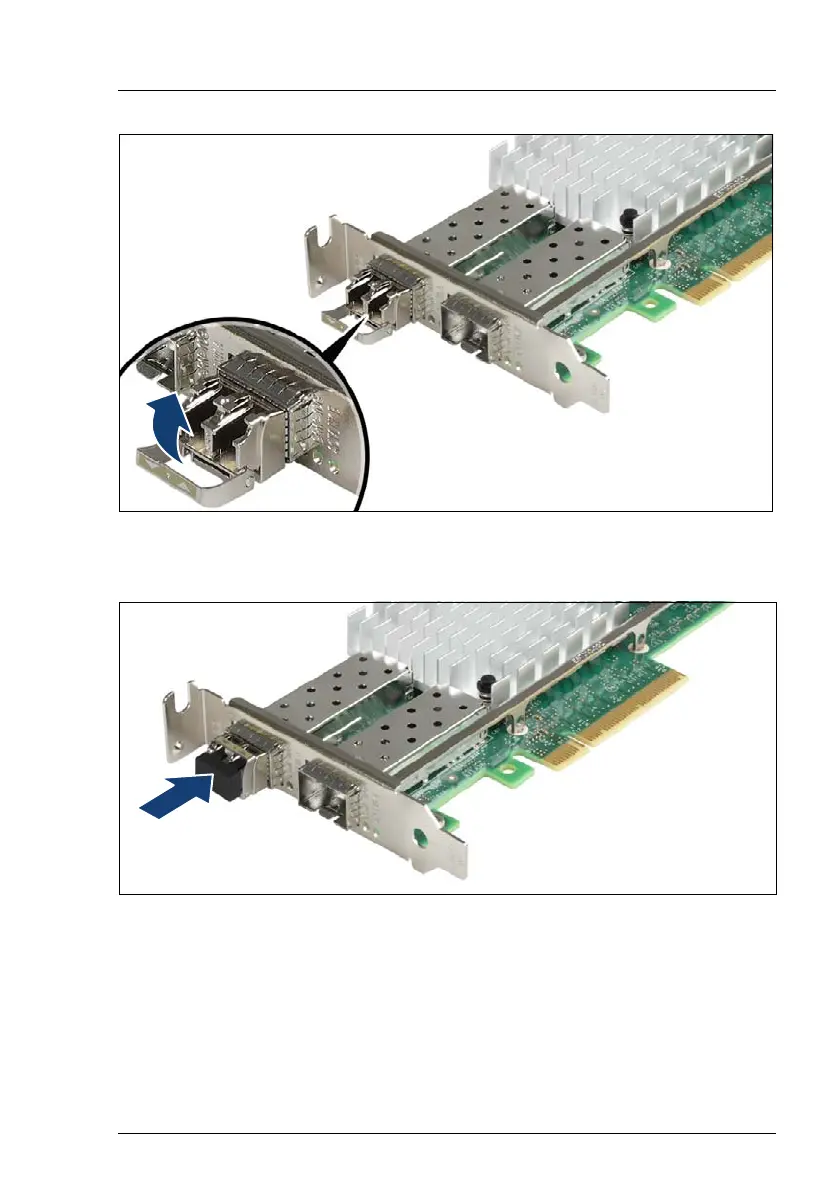

Figure 84: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 85: Installing the protective cap
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective cap to the SFP+ transceiver module.
