TX1320 M4 Upgrade and Maintenance Manual 179
Expansion cards and backup units

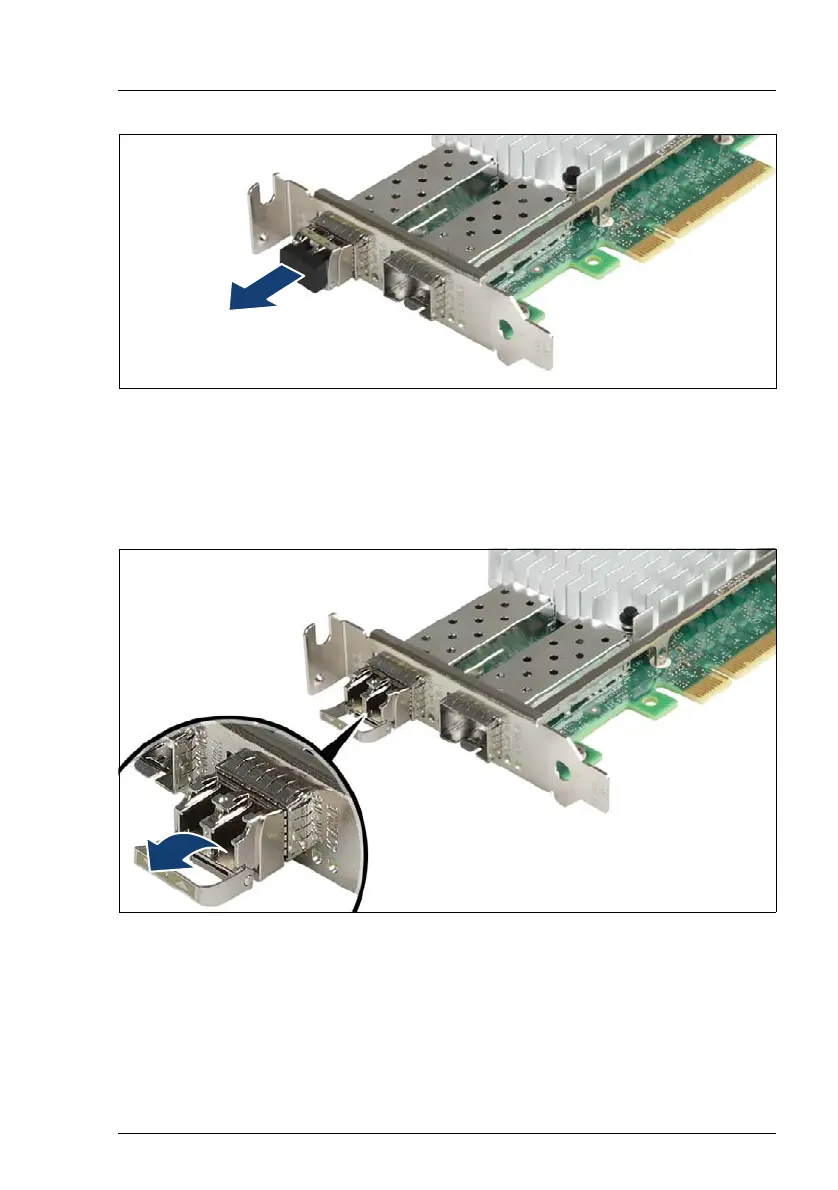

Figure 87: Removing the protective cap
Ê If present, remove the protective cap from the SFP+ transceiver module.
V CAUTION!
Keep the protective cap for future use.
Figure 88: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
