184 Upgrade and Maintenance Manual TX1320 M4
Expansion cards and backup units

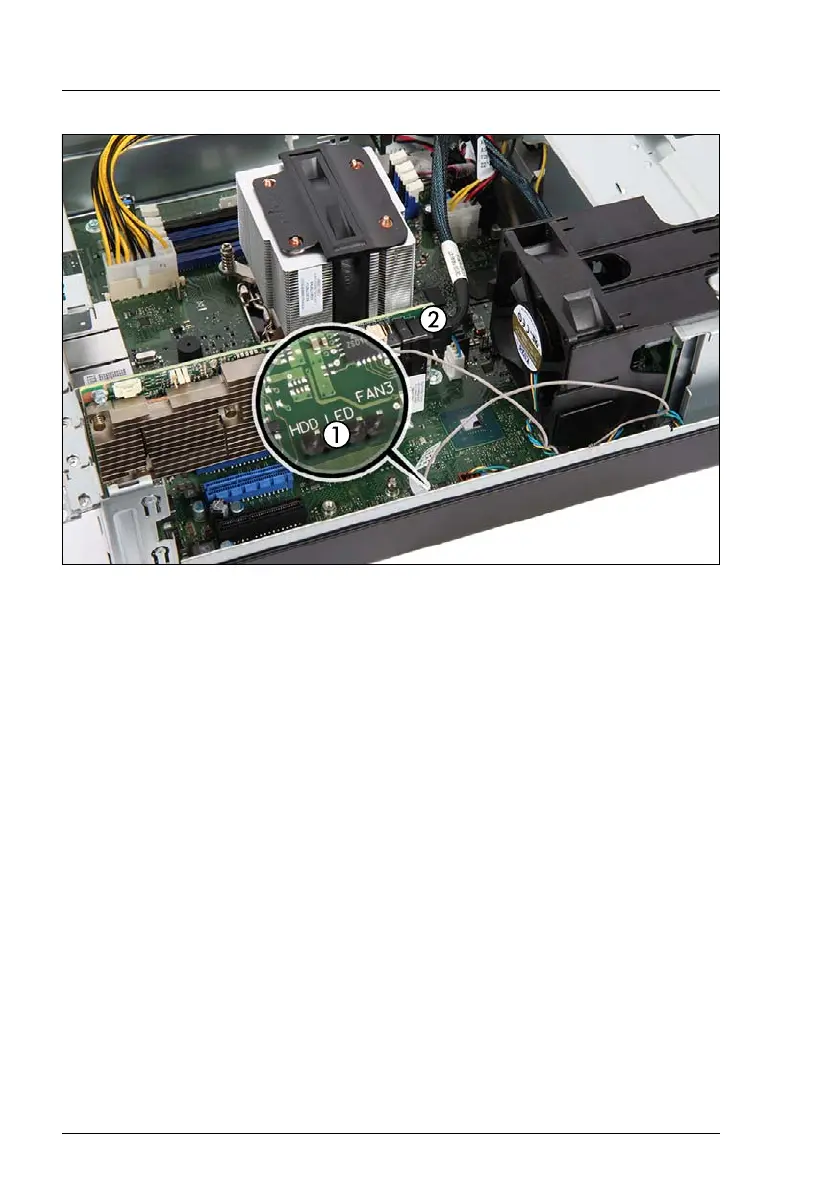

Figure 93: Connecting HDD LED cable and SAS cables
Ê Connect the cables of the PRAID EP5x0i:
1 HDD LED cable to connector "HDD LED" on the system board
2 If applicable, the SAS cables from the backplanes (depending on the
configuration)
