244 Upgrade and Maintenance Manual TX1320 M4

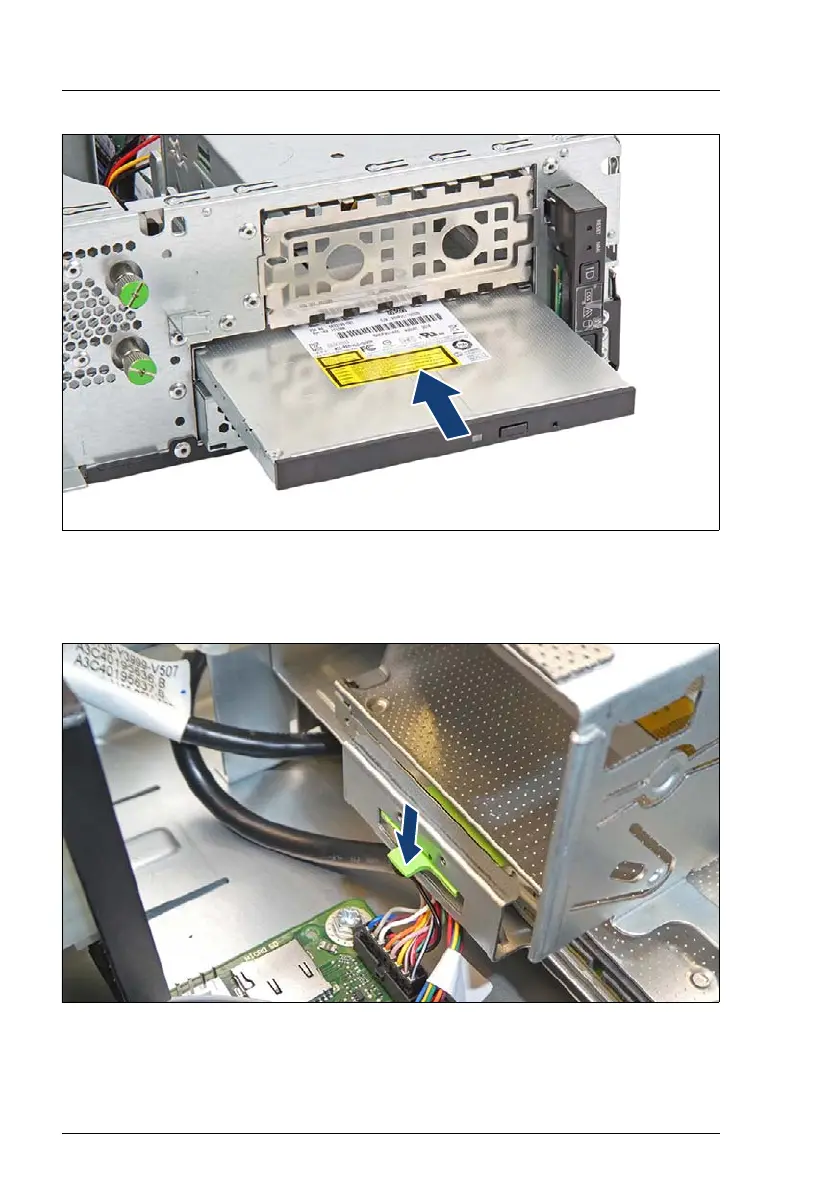

Figure 142: Installing the ODD (A)
Ê Insert the ODD with the ODD latch first into its installation bay (see arrow)
and push it until the small green latch is visible on the rear of the cage.
Figure 143: Installing the ODD (B)
Ê Press down the small green (see arrow) latch and push the ODD back until
it engages.
