TX1320 M4 Upgrade and Maintenance Manual 247
Accessible drives

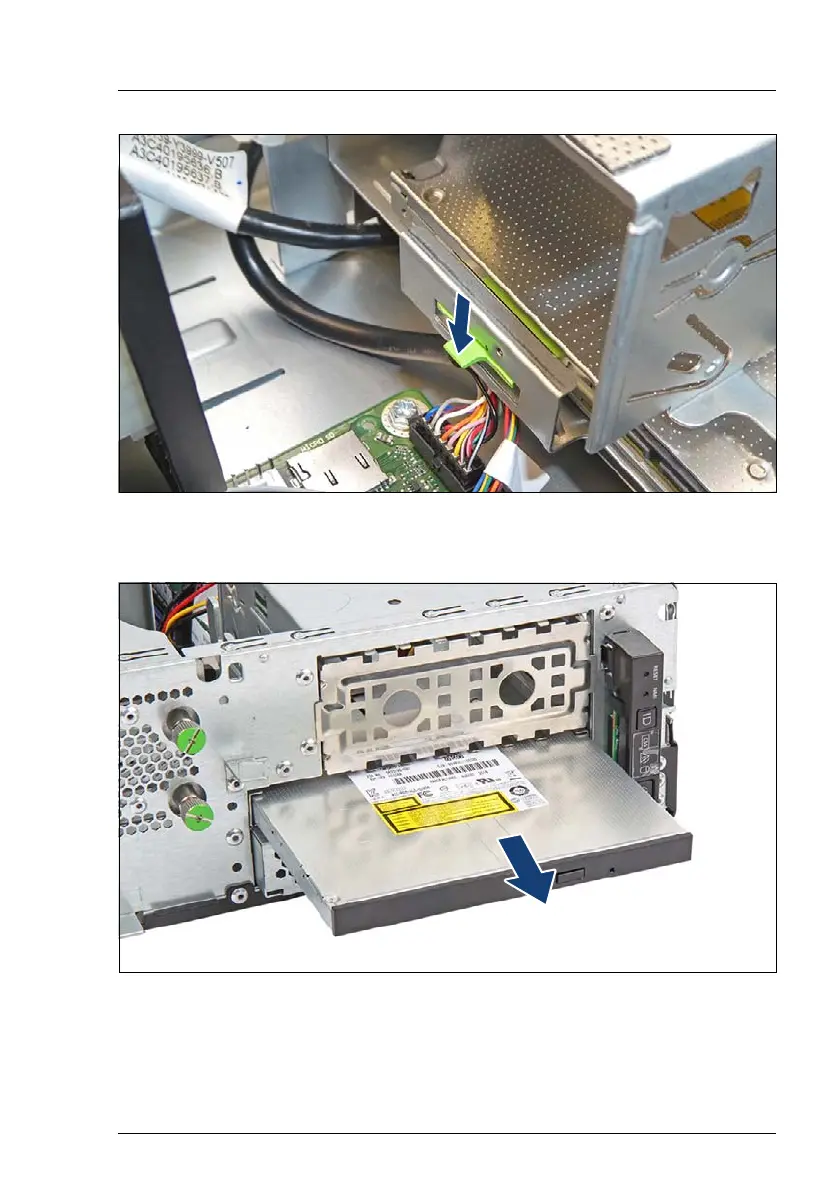

Figure 145: Unlocking the ODD
Ê Press the ODD latch in direction of the arrow until it disengages
Figure 146: Removing the ODD
Ê Pull the ODD out of the bay (see arrow).
