System board and components
V CAUTION!
The M.2 slot 1 must be equipped first. An M.2 SSD in M.2 slot 2 is not
recognized, if M.2 slot 1 is free.
I Each M.2 SSD needs one hexagon stand-off for fastening. To support
different length of M.2 SSD, several nuts are on the system board
indicating the positions for fastening the M.2 SSD.
Ê If no M.2 SSD has been installed before:
Ê Remove the screw (see orange circles in figure 175) .
I If the hexagon stand-off is unscrewed as well, remove the screw
from the hexagon stand-off.
Ê Install the hexagon stand-off on the right position depending on the
length of the M.2 SSD.

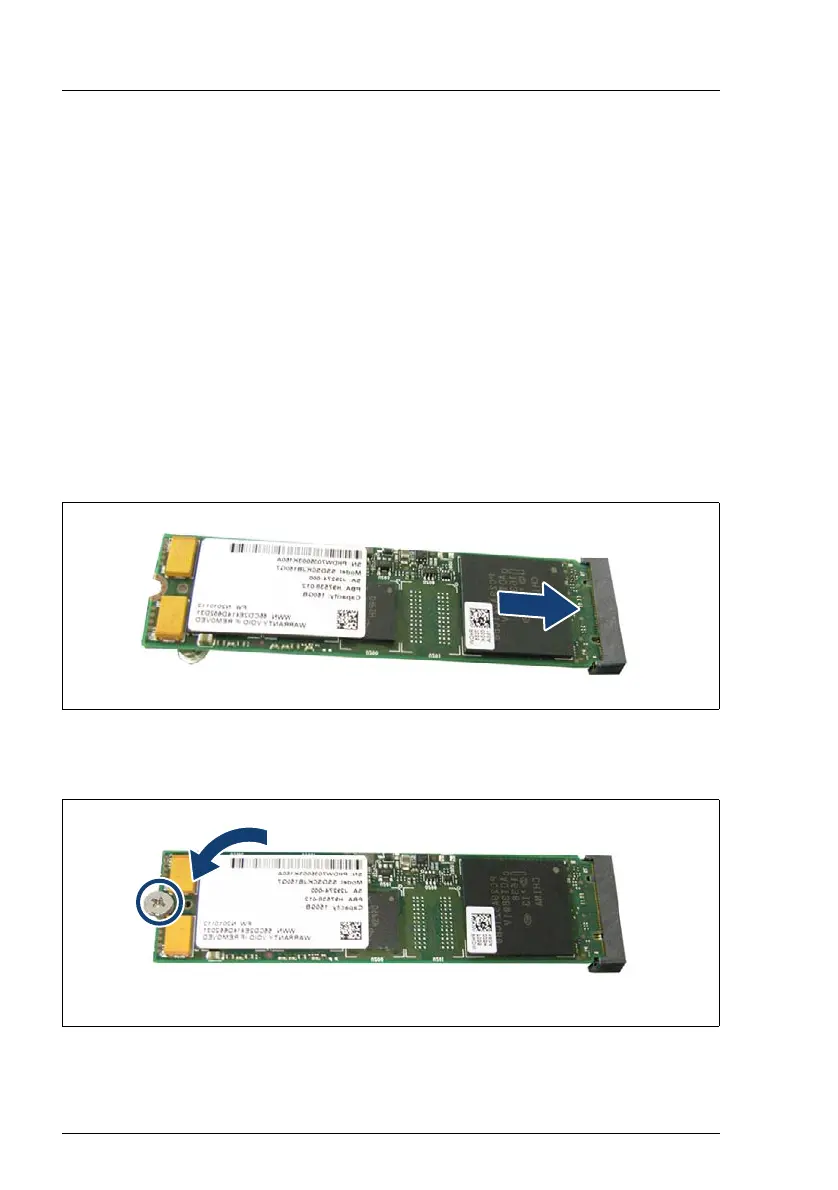

Figure 176: Installing the M.2 SSD
Ê With the label facing up, insert the M.2 SSD into the M.2 slot at a slight angle.
Figure 177: Fastening the M.2 SSD
Ê Fasten the M.2 SSD with the screw (see circle).
