TX1320 M4 Upgrade and Maintenance Manual 297
System board and components

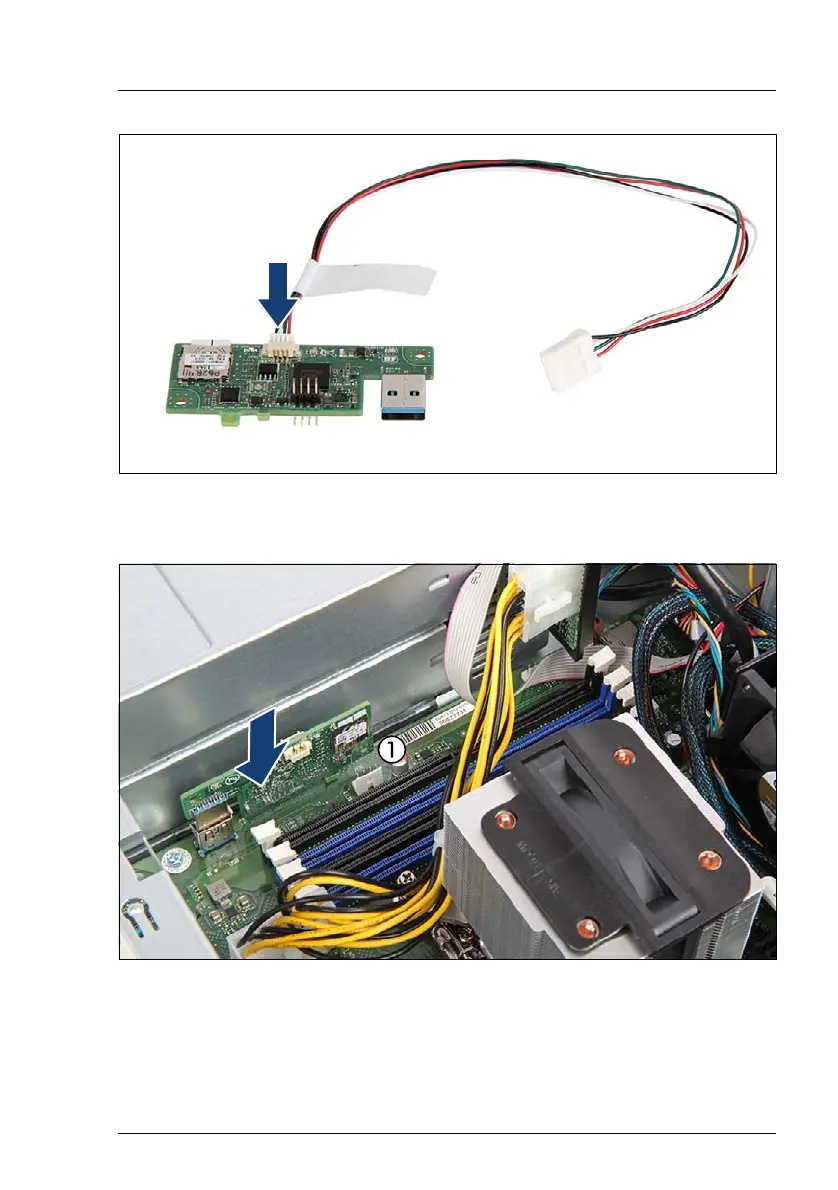

Figure 181: Connecting the cable to the Dual microSD 64GB Enterprise
Ê Connect the cable to the Dual microSD 64GB Enterprise.
Figure 182: Installing the Dual microSD 64GB Enterprise
Ê Insert the Dual microSD 64GB Enterprise into the system board connector
"USB 1" (see arrow).
Ê Connect the ROC cable to the system board connector "ROC" (1).
