Fujitsu PRIMERGY TX2550 M5

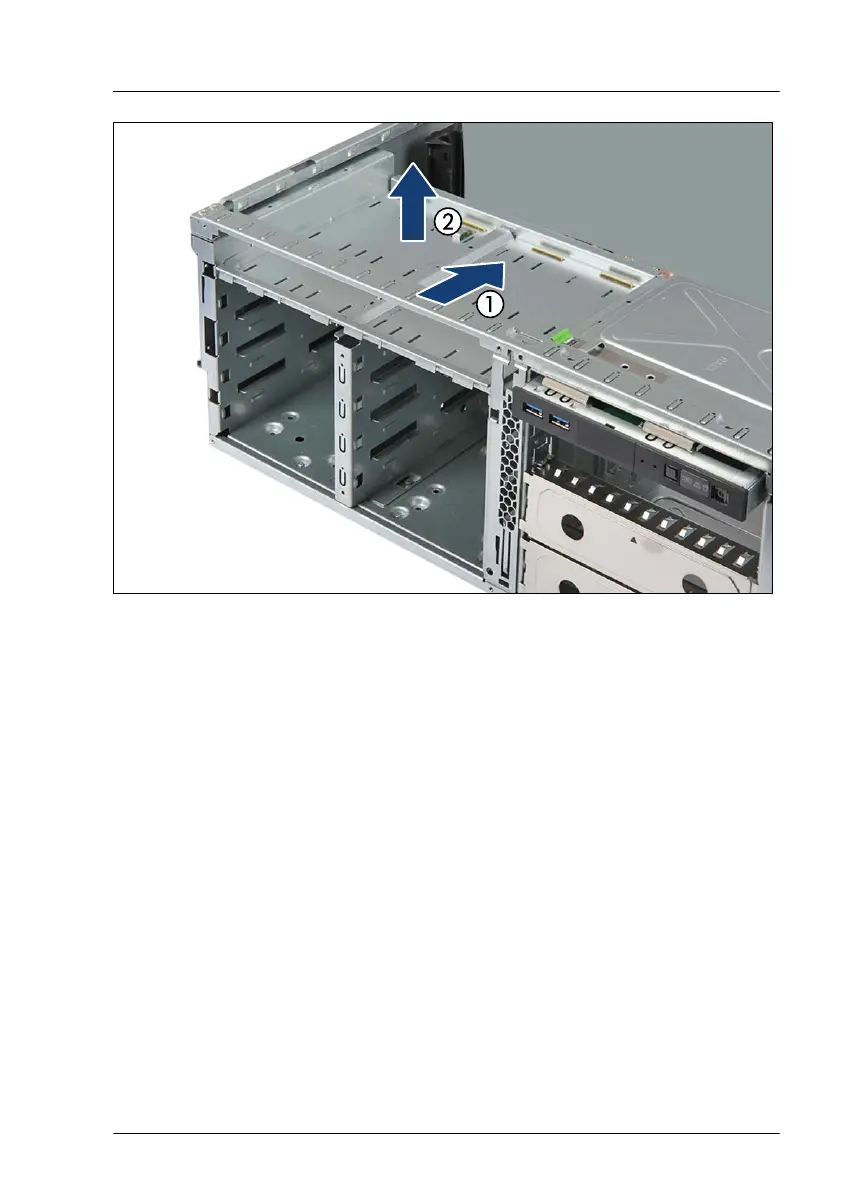

Figure 96: Removing the 3.5-inch HDD bay top cover (C)
▶
Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
HDD backplane below (1).
▶
Remove the 3.5-inch HDD bay top cover from the chassis (2).
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 187
