Fujitsu PRIMERGY TX2550 M5

Removing a 3.5-inch HDD SAS backplane

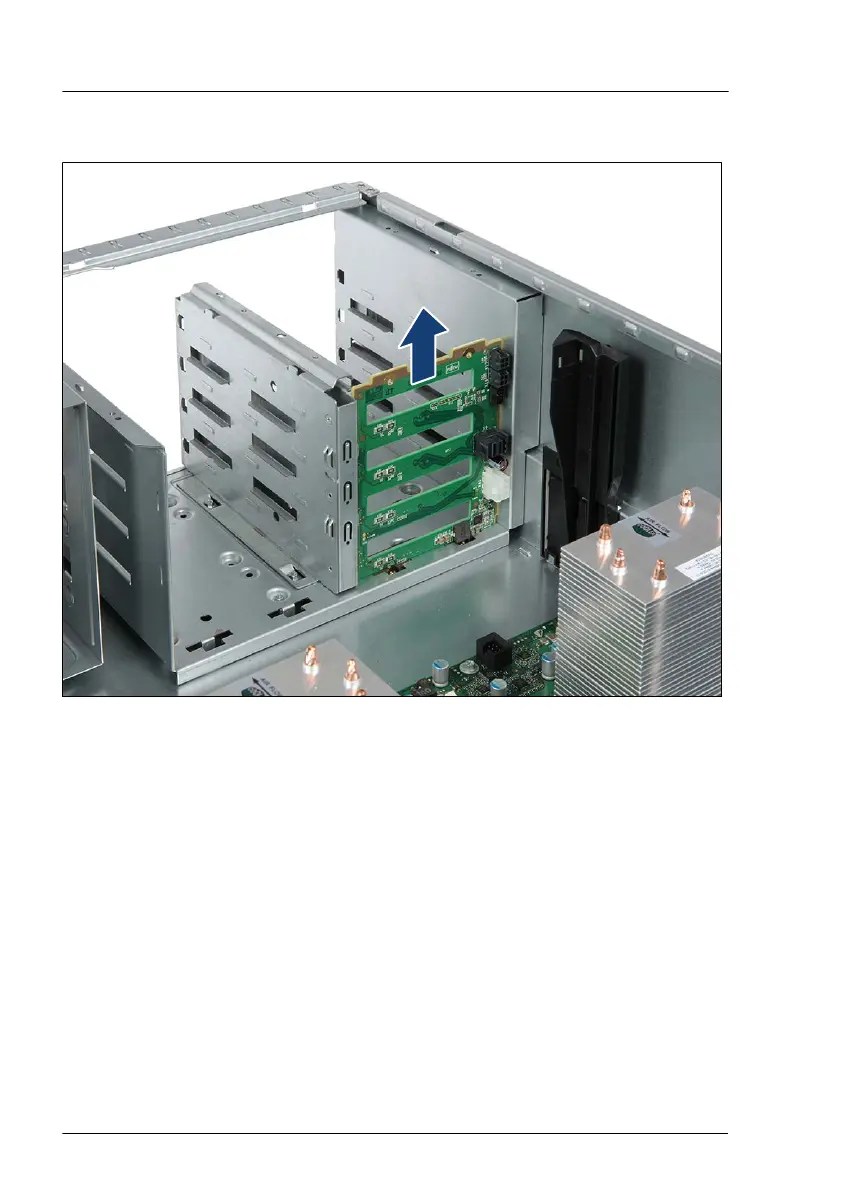

Figure 97: Removing the 3.5-inch HDD SAS backplane
▶
Pull up the SAS backplane and remove it from the HDD bay in a vertical
motion.
Hard disk drive (HDD) / solid state disk (SSD)
188 Upgrade and Maintenance Manual TX2550 M5
