Installing a 3.5-inch HDD backplane

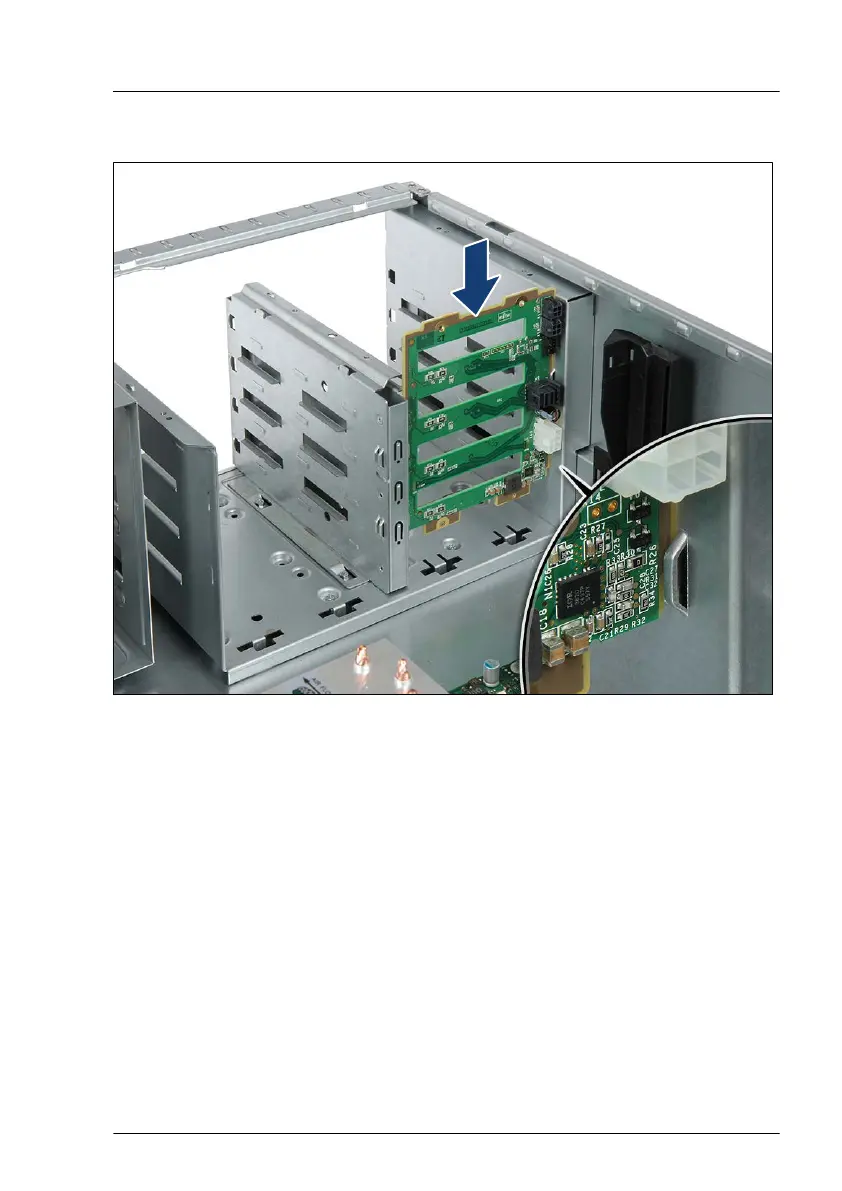

Figure 98: Installing the new 4x 3.5-inch HDD SAS backplane (A)
▶
Fit the SAS backplane into the guide on the outer wall of the HDD bay (see
close-up) and lower it into the bottom rim.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 189
