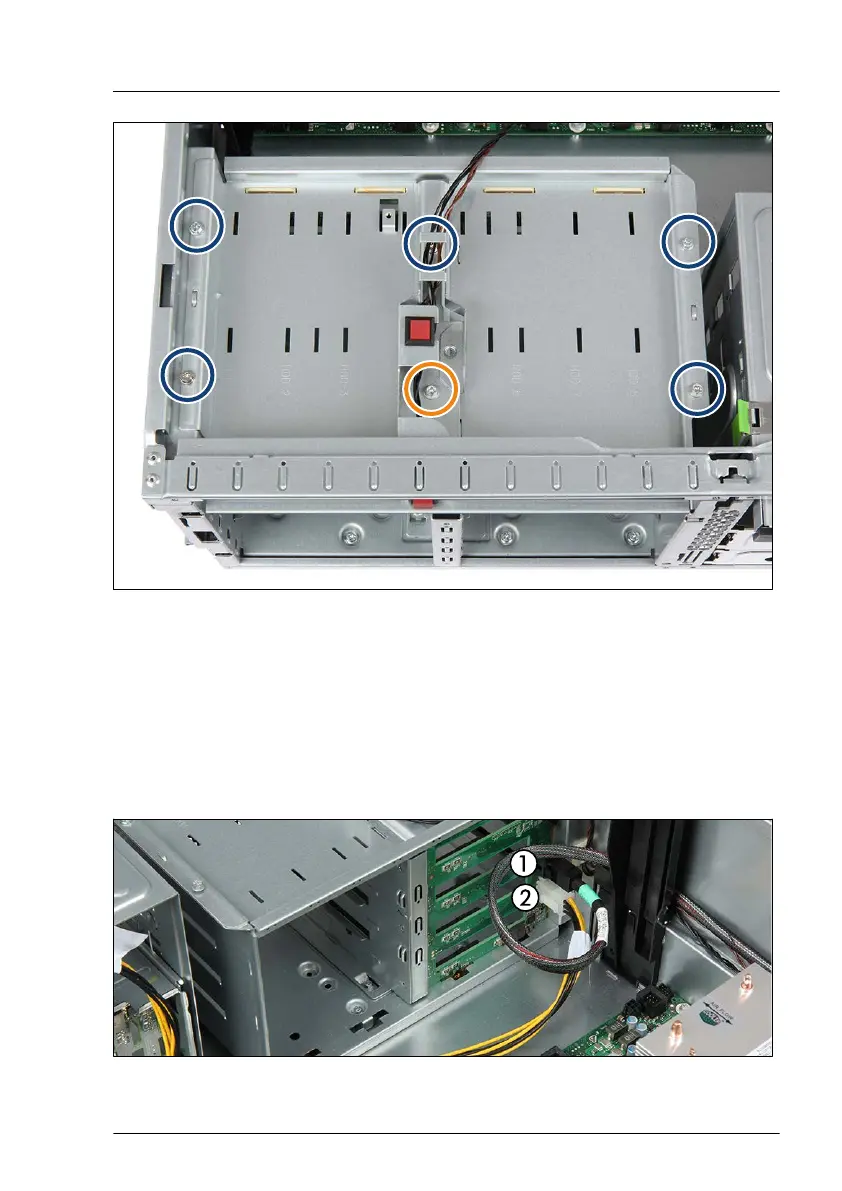

Figure 102: Installing the 3.5-inch HDD bay top cover (C)
▶
Fasten the HDD bay top cover to the chassis with five M3 x 4.5 mm screws
(see blue circles).
▶
Fasten the intrusion switch holder on the HDD bay top cover with one M3 x
4.5 mm screw (see orange circle).
Connecting cables to the SAS backplane 1
Figure 103: Connecting cables to the SAS backplane 1
Hard disk drive (HDD) / solid state disk (SSD)
