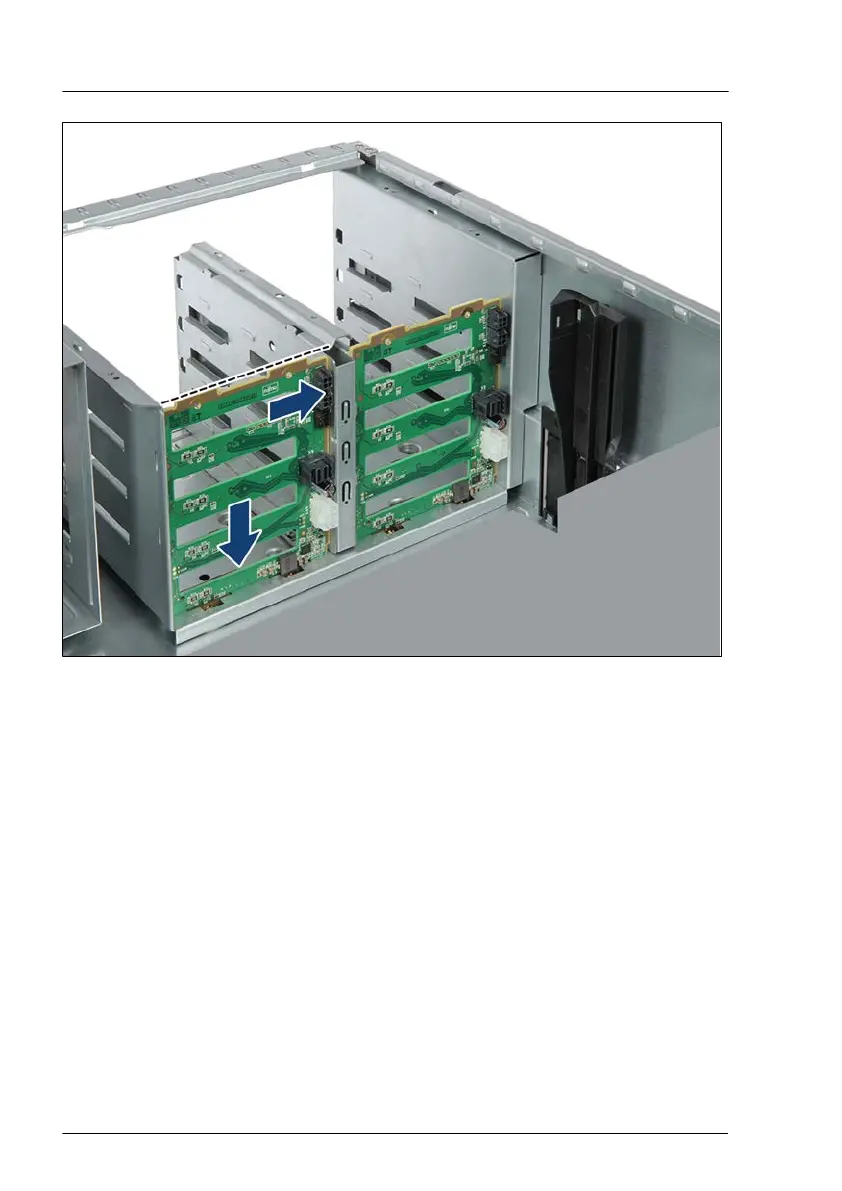

Figure 106: Installing the second 3.5-inch HDD SAS backplane (B)
▶
Ensure that the SAS backplane is properly fitted into the bottom rim and side
guide.
▶
Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
Hard disk drive (HDD) / solid state disk (SSD)
198 Upgrade and Maintenance Manual TX2550 M5
