Fujitsu PRIMERGY TX2550 M5

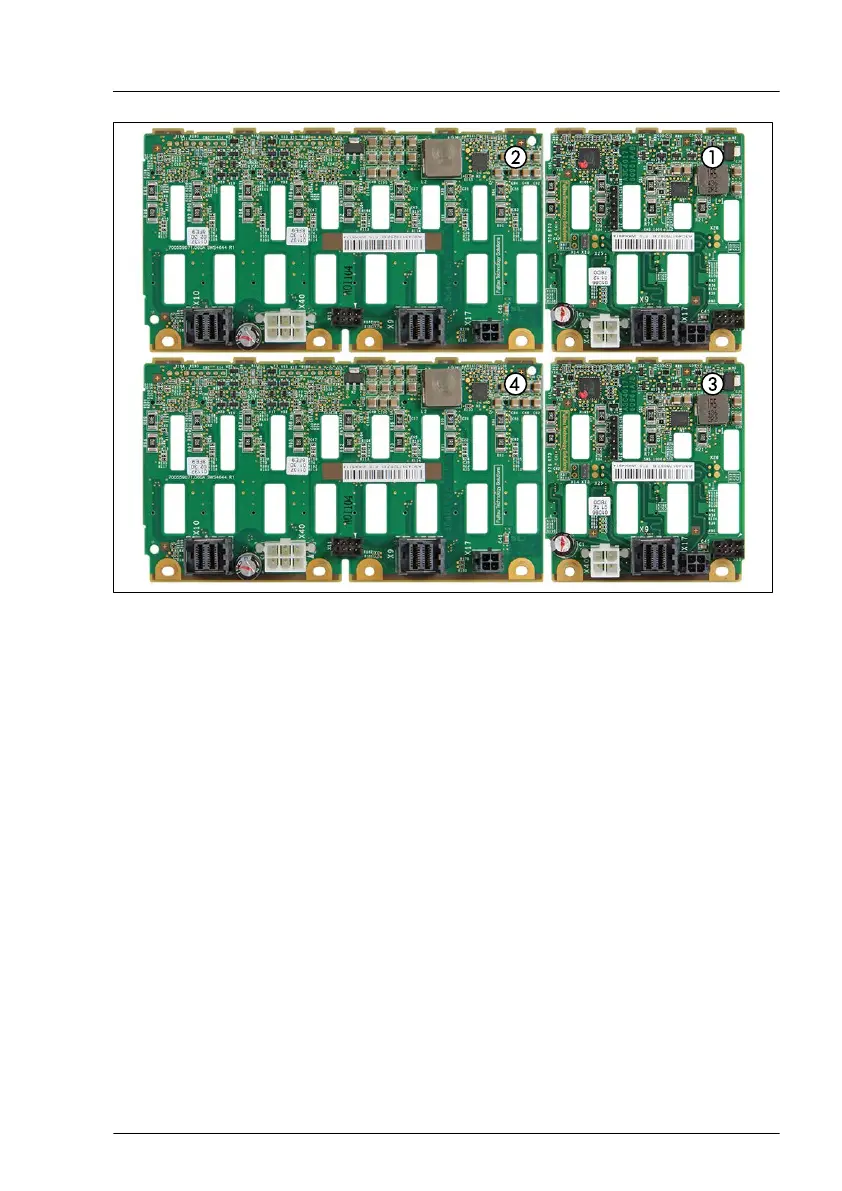

Figure 147: Numbering SAS backplanes
1 SAS backplane 1
2 SAS backplane 2
3
SAS backplane 3
4 SAS backplane 4
▶
Disconnect all cables from the corresponding SAS backplane.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 251
