Fujitsu PRIMERGY TX2550 M5

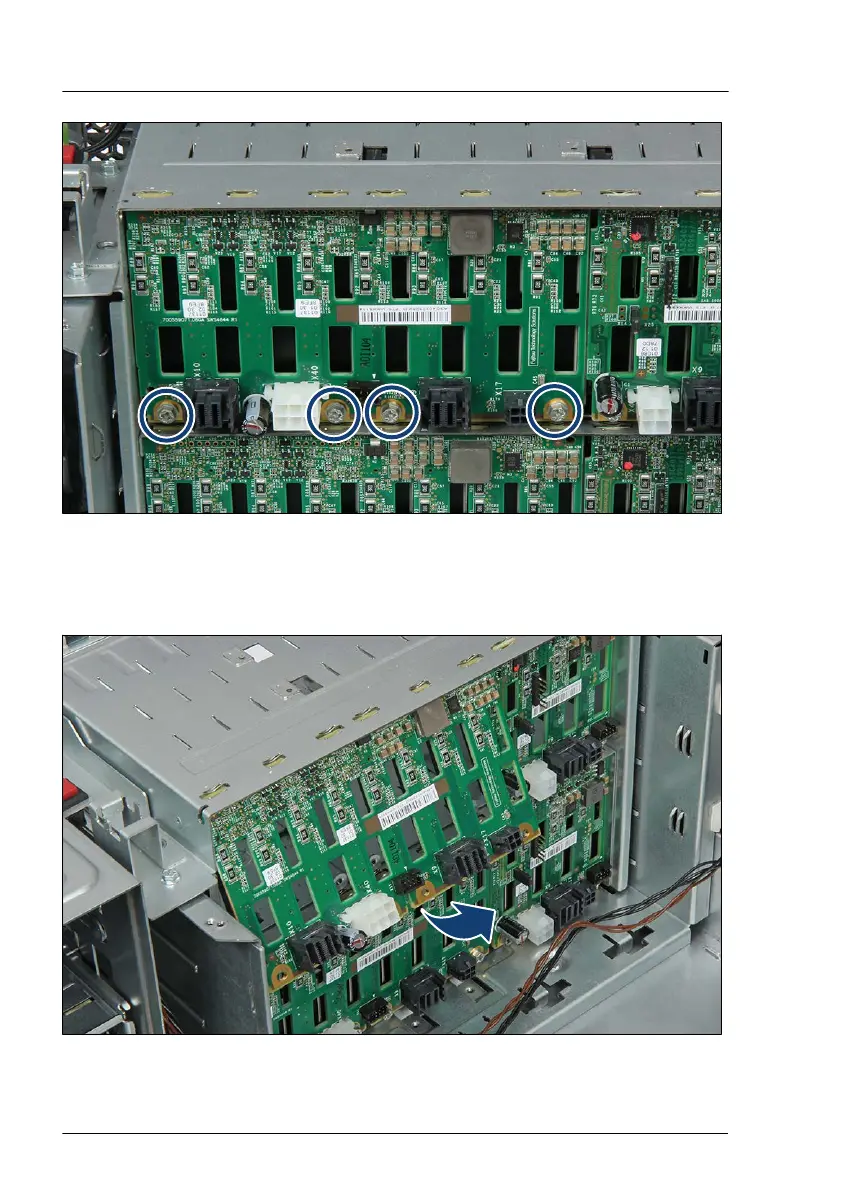

Figure 148: Removing a SAS backplane - example for SAS backplane 3 (A)
▶
Remove the four (SAS backplane 2 and 4) or two screws (SAS backplane 1
and 3).
Figure 149: Removing a SAS backplane - example for SAS backplane 3 (B)
Hard disk drive (HDD) / solid state disk (SSD)
252 Upgrade and Maintenance Manual TX2550 M5
