Take out the SAS backplane in a slight angle.
Installing the SAS backplane

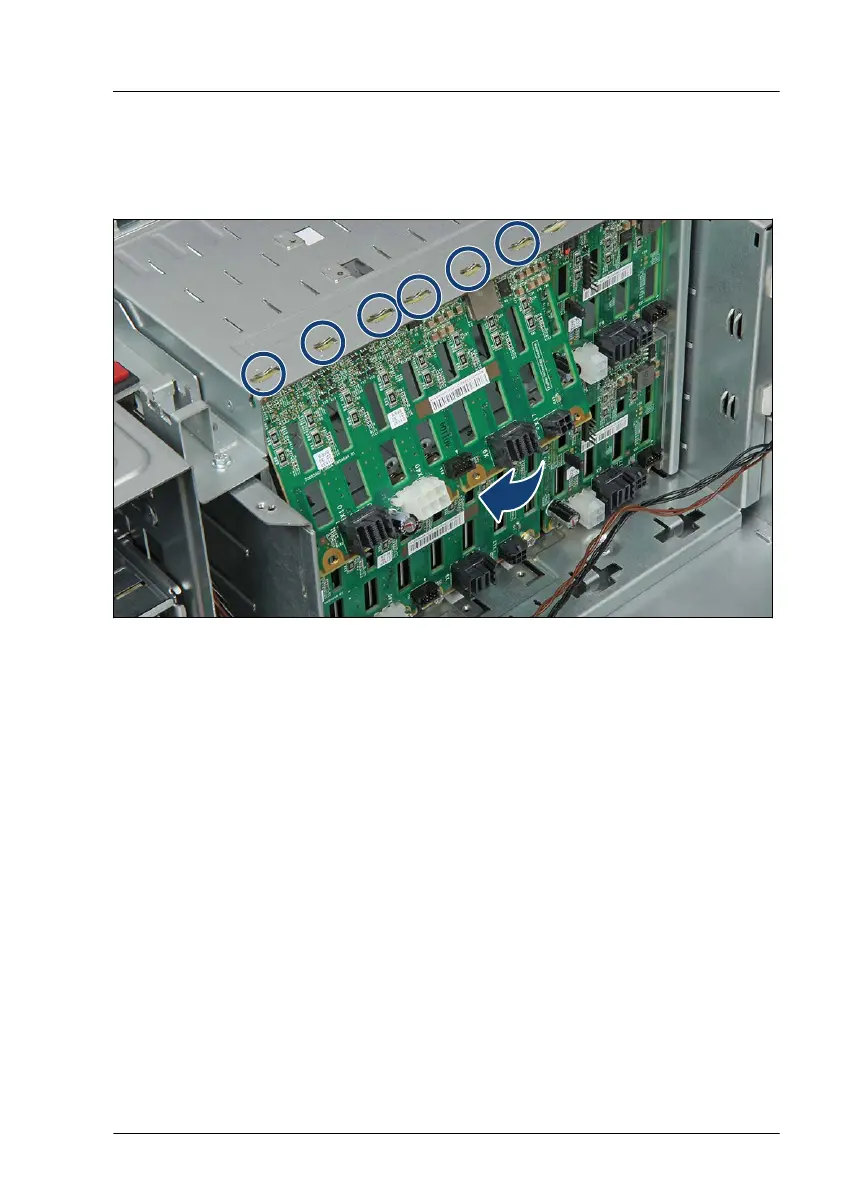

Figure 150: Installing a SAS backplane - example for SAS backplane 3
▶
At a slight angle, fit the new SAS backplane into the corresponding recesses
in the HDD cage (see circles).
▶
Fold down the SAS backplane.
▶
Fasten the SAS backplane with four or two screws (see Figure 148).
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 253
