Installing the SAS expander board holder

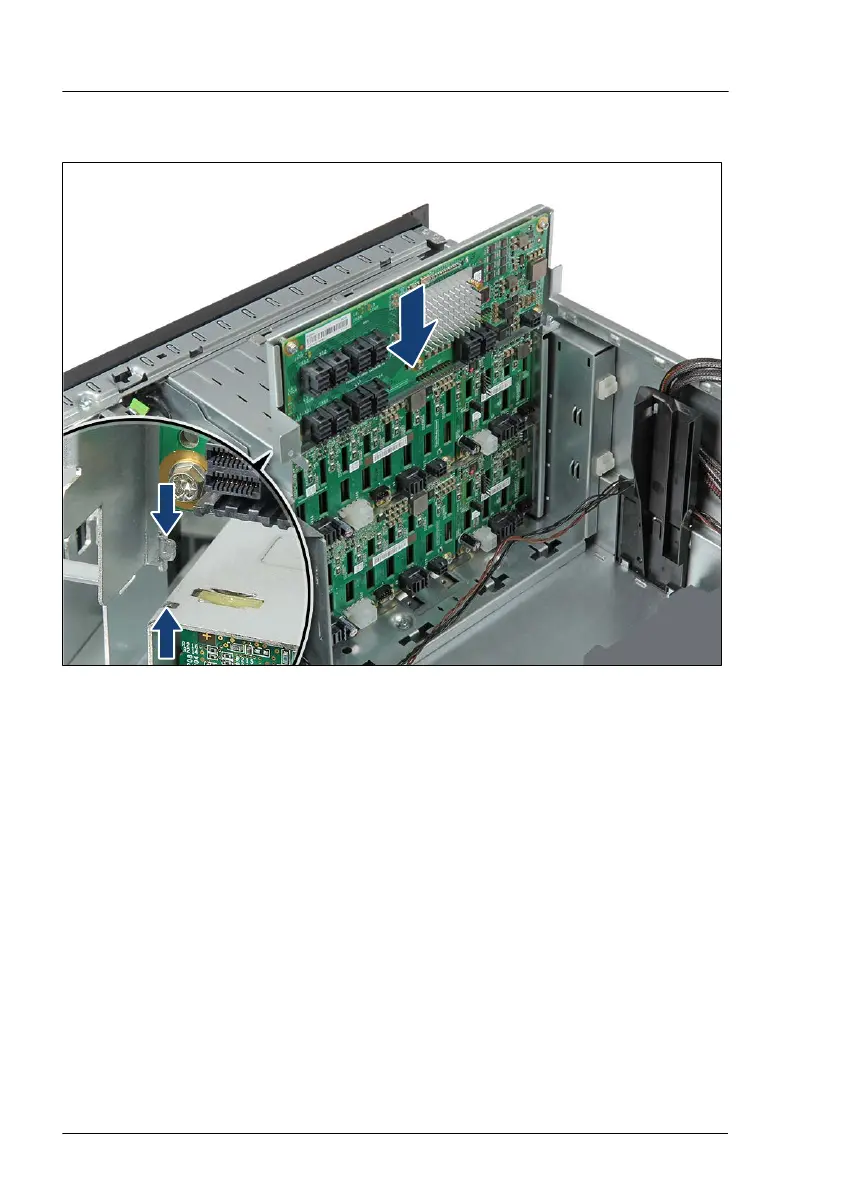

Figure 151: Installing the SAS expander board holder (A)
▶
Align the SAS expander board holder at a right angle to the HDD cage as
shown.
▶
Ensure that the SAS expander board is flush with the SAS backplanes
below.
▶
Lower the SAS expander board holder onto the HDD cage, so that the two
latches on each side of the holder engage with the slots on the HDD cage
(see close-up).
Hard disk drive (HDD) / solid state disk (SSD)
254 Upgrade and Maintenance Manual TX2550 M5
