Installing the 8x 2.5-inch HDD/SSD extension box

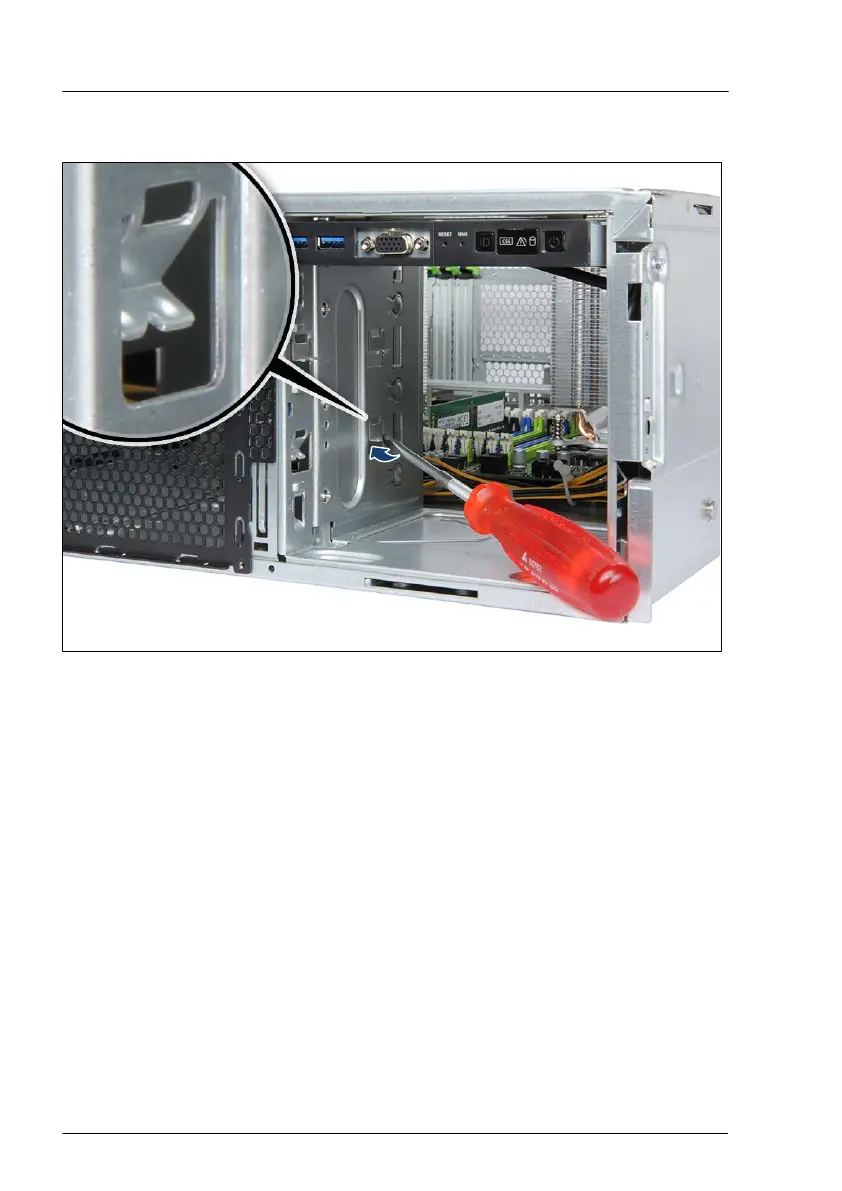

Figure 161: Bending in mounting brackets
▶
Using a screw driver, bend the four mounting brackets of the middle
installation bay (bay 2) inwards (see close-up):
▶
Bend in the lower two mounting brackets on each side of the drive cage.
▶
Disengage the accessible drive locking bar
, see "Opening the accessible
drive locking bar" on page 96.
Hard disk drive (HDD) / solid state disk (SSD)
