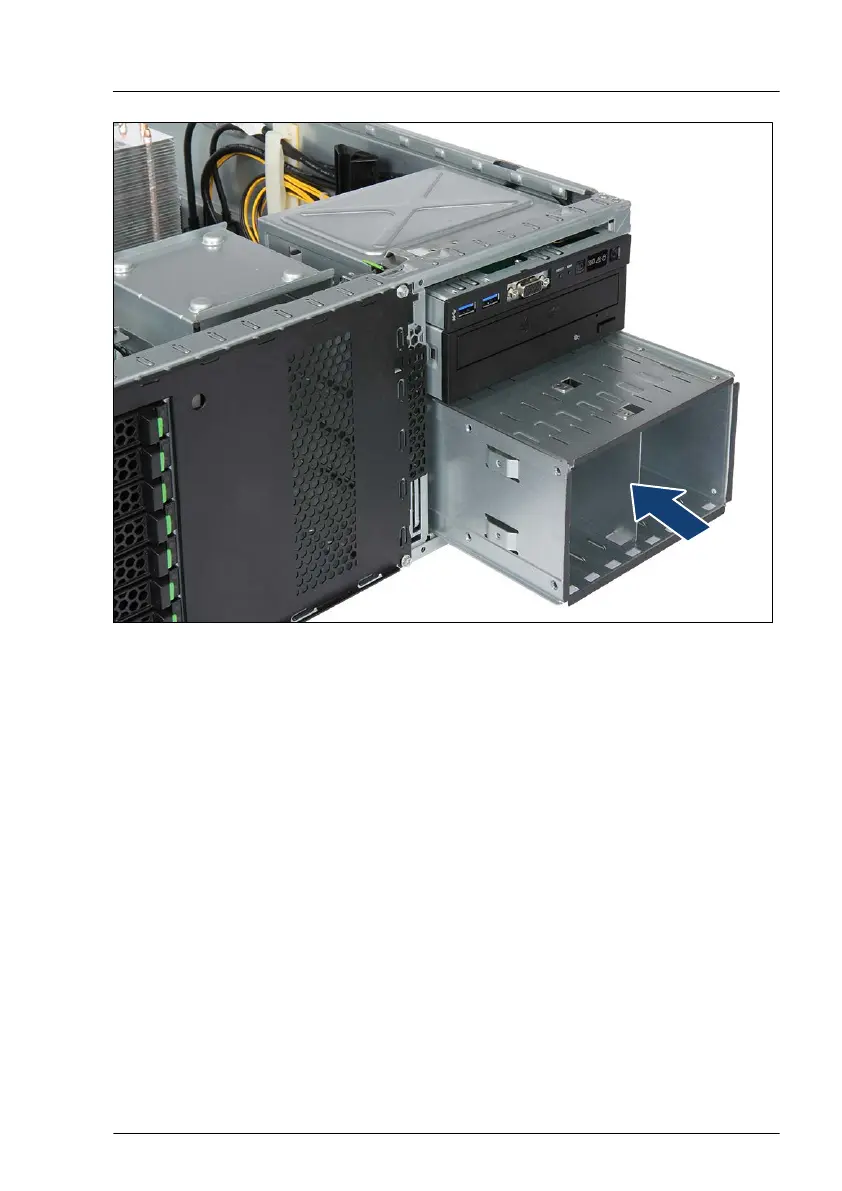

Figure 162: Inserting the 8x 2.5-inch HDD/SSD extension box
▶
Insert the 8x 2.5-inch HDD/SSD extension box into installation bays 2 and 3
and carefully push in until it lines up with the front panel.
▶
Engage the locking bar, see "Closing the accessible drive locking bar" on
page 98.
▶
If applicable, install the expander board, see "Installing the SAS expander
board" on page
306.
Hard disk drive (HDD) / solid state disk (SSD)
