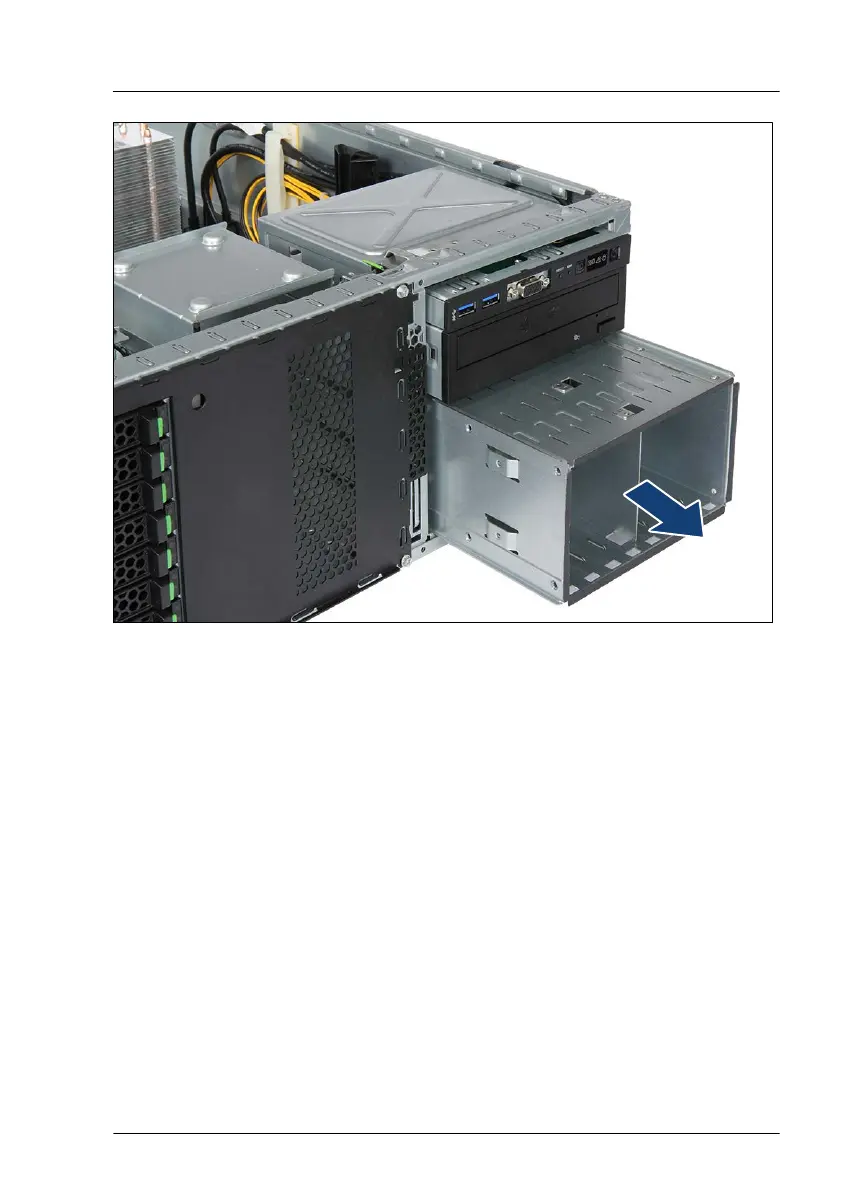

Figure 164: Removing the 8x 2.5-inch HDD/SSD extension box
▶
Carefully pull the 8x 2.5-inch HDD/SSD extension box out of its installation
bays.
▶
Engage the locking bar, see "Closing the accessible drive locking bar" on
page
98.
Installing accessible drive dummy covers
▶
Install accessible drive filler covers into empty drive bays, see "Installing
accessible drive filler covers" on page 101.
▶
Install accessible drive covers into the front cover, see "Installing accessible
drive covers" on page 102.
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page 92.
▶
"Installing the system air duct" on page 68.
