Cabling the 4x 3.5-inch HDD extension box

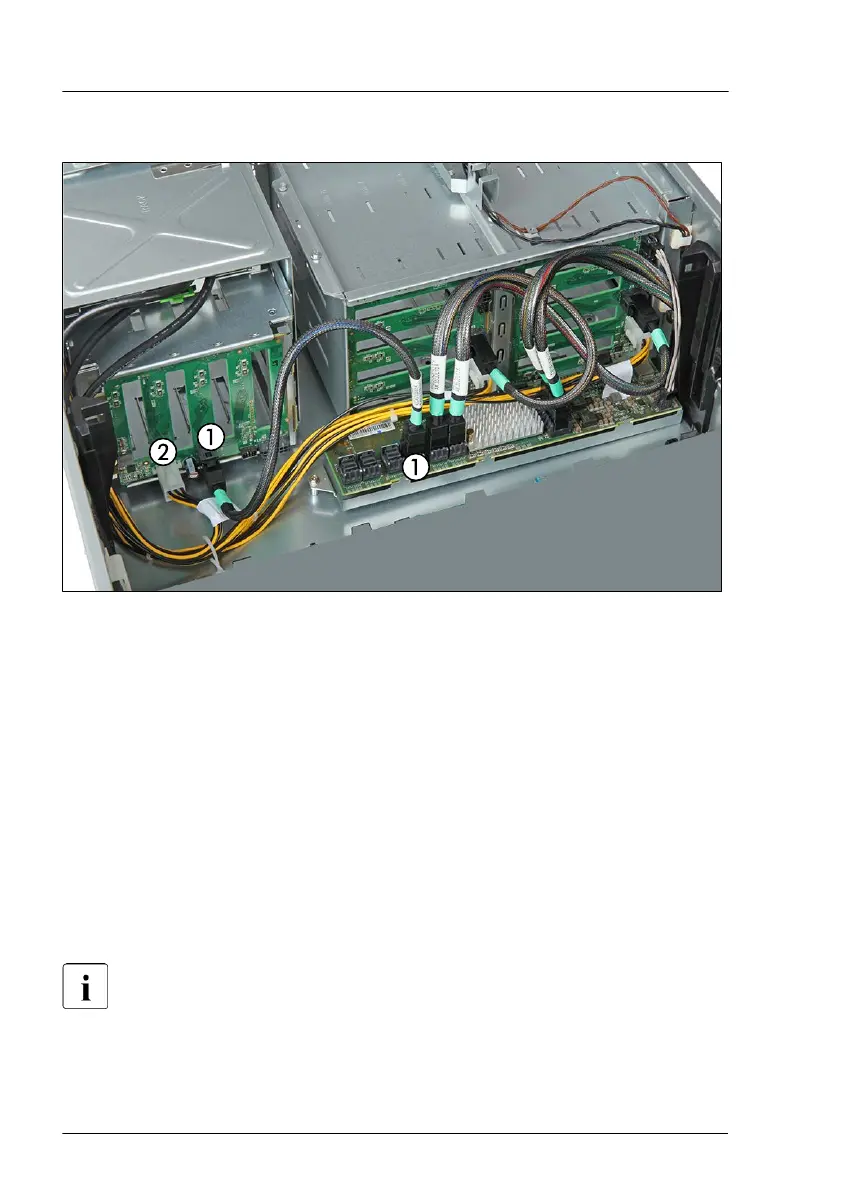

Figure 170: Connecting cables to the 4x 3.5-inch HDD extension box
▶
Connect the following cables to the HDD backplane:
1 SAS cable C11 from connector "X12" on expander board to connector
"X9"
2 Power cable C6 from connector "PWR3" on system board to
connector "X40"
▶
If applicable, connect the power cable and the SA
T
A cable of the ultraslim
ODD to the system board (see "Installing the ultraslim ODD in the 4x 3.5-
inch HDD extension box" on page 444).
▶
If applicable, connect the OOB cable, see "Replacing the OOB cable" on
page 554.
For the cable plan, see "Appendix B" on page 589
.
Hard disk drive (HDD) / solid state disk (SSD)
280 Upgrade and Maintenance Manual TX2550 M5
