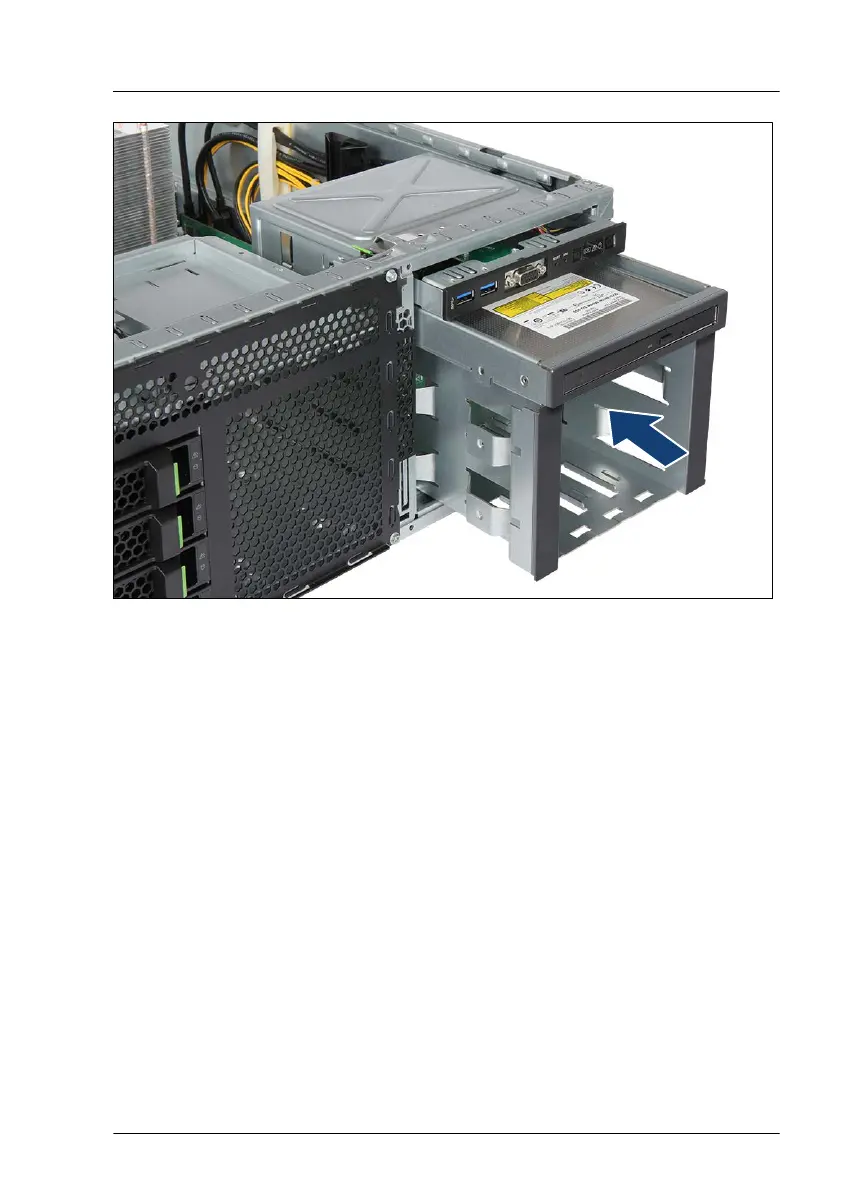

Figure 169: Inserting the 4x 3.5 HDD extension box
▶
If applicable, run the cables of the ultraslim ODD through the bay.
▶
Insert the 4x 3.5-inch HDD extension box into installation bays 1 to 3 and
carefully push in until it lines up with the front panel.
▶
Engage the locking bar
, see "Closing the accessible drive locking bar" on
page 98.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 279
