Installing the new HDD backplane

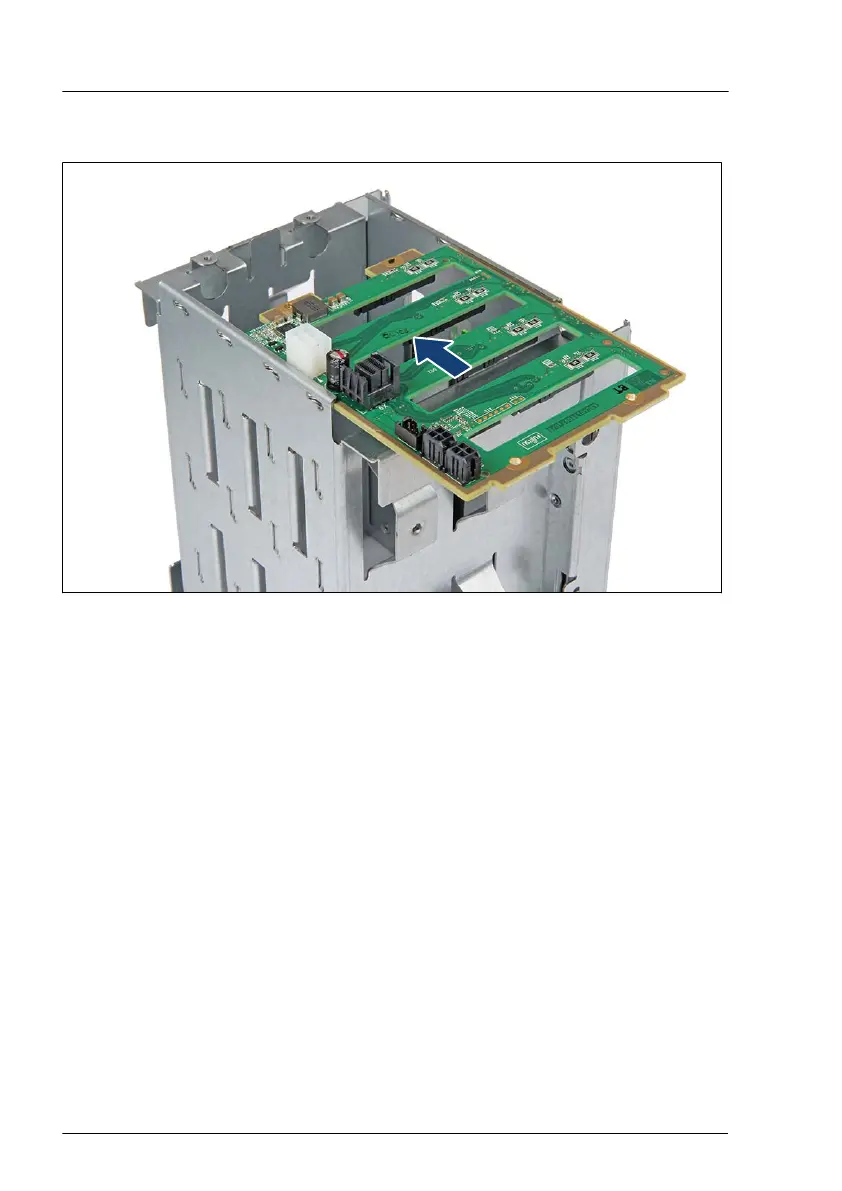

Figure 175: Installing the HDD backplane (A)
▶
Fit the HDD backplane into the guides.
▶
Push the HDD backplane in the direction of the arrow
.
Hard disk drive (HDD) / solid state disk (SSD)
288 Upgrade and Maintenance Manual TX2550 M5
