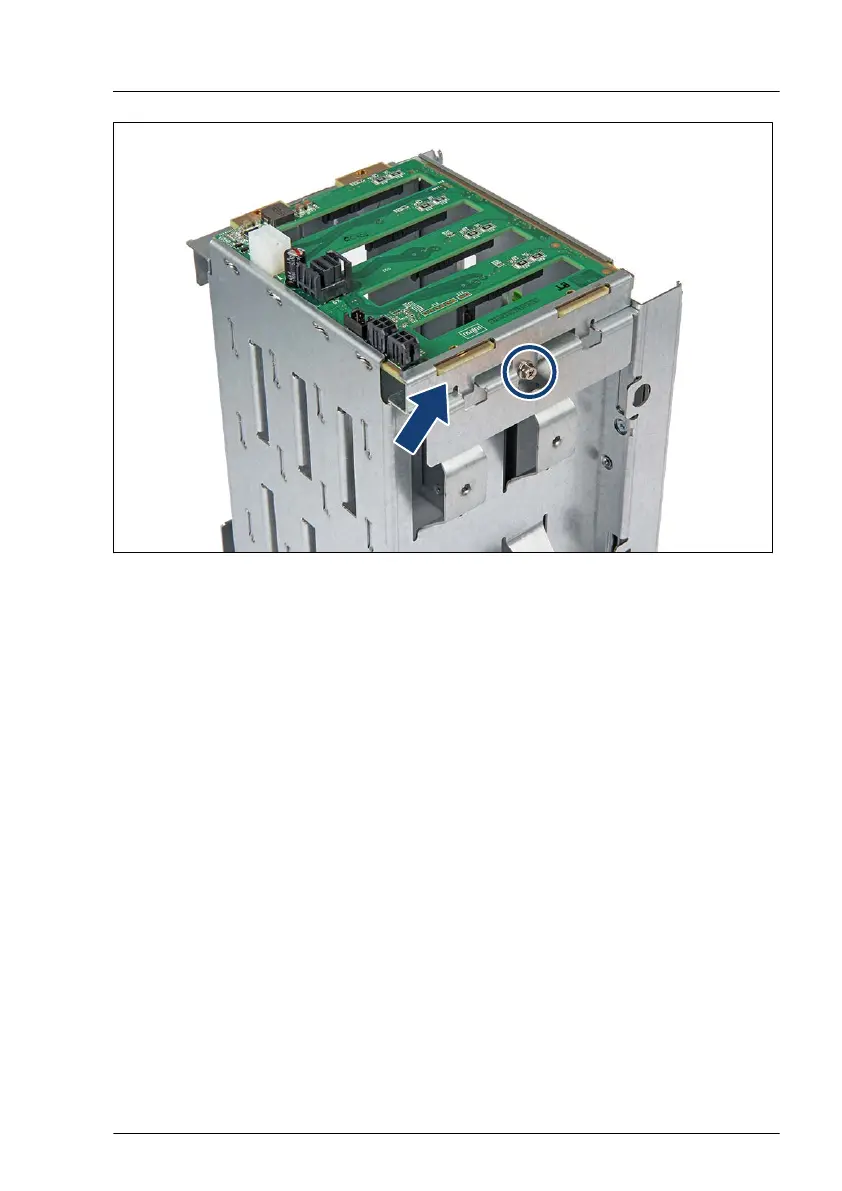

Figure 176: Installing the HDD backplane (B)
▶
Place the bracket (see arrow) and fasten it with one screw (see circle).
▶
Fasten the HDD backplane with two screws (see Figure 172).
▶
Install the 4x 3.5-inch HDD extension box, see "Installing the 4x 3.5-inch
HDD extension box" on page
277.
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page
92.
▶
"Installing the system air duct" on page 68.
▶
"Reassembling" on page 68.
▶
Install all HDDs or dummy modules into their original bays in the HDD
extension box, see "Installing 3.5-inch HDD modules" on page 177 and
"Installing a 3.5-inch dummy module" on page 181.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
