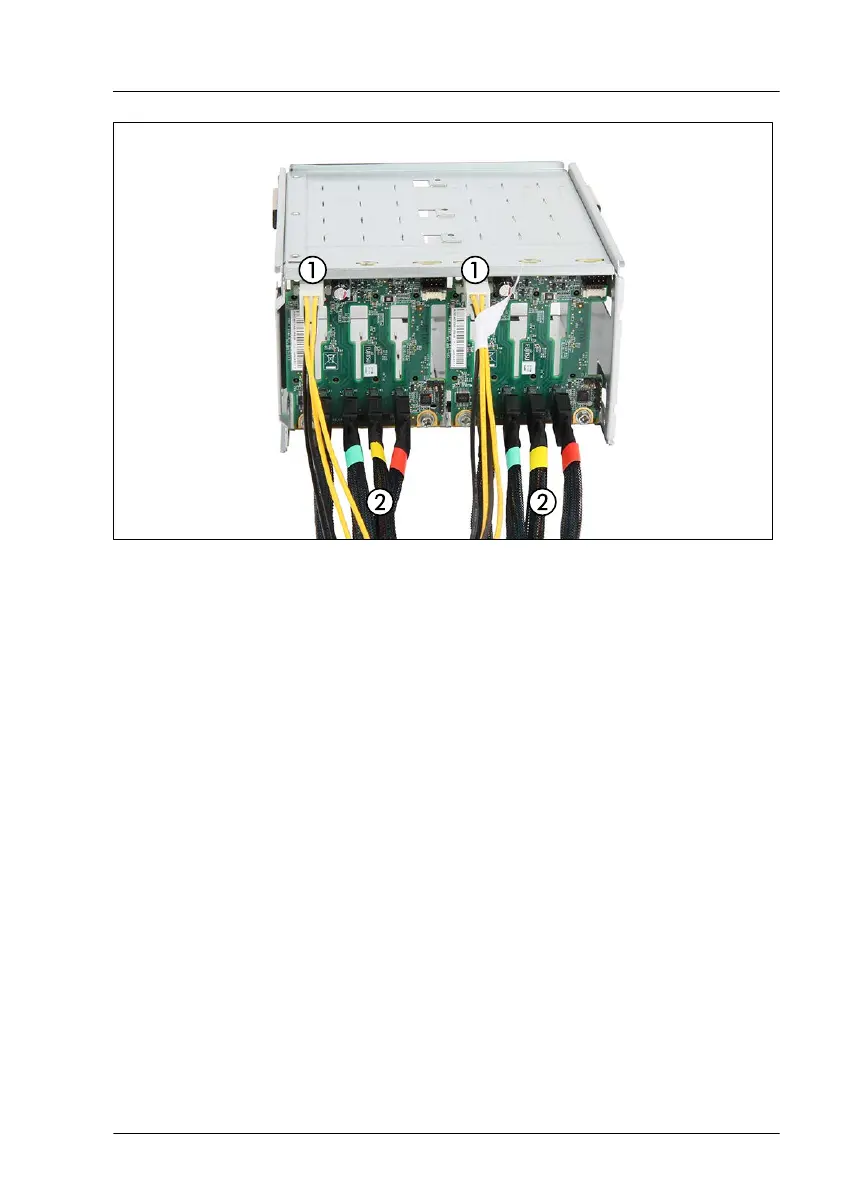

Figure 177: Connecting the PCIe cables to the backplanes
▶
Connect the power cable C5 to connector X12 on the backplane 1 and
backplane 2 (1).
▶
Connect the color coded connectors of two PCIe SSD cables C27 to
backplanes as shown (2).
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 291
