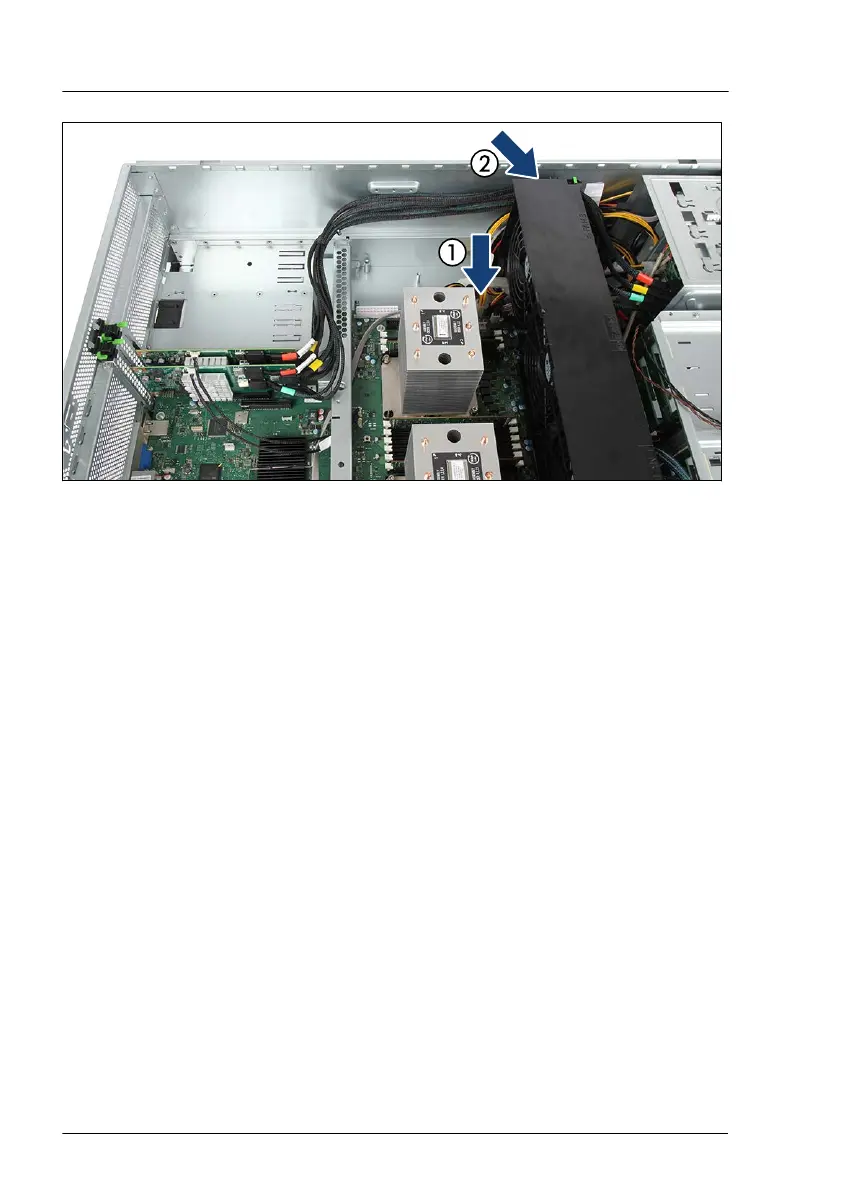

Figure 178: Connecting the power cable and PCIe SSD cable routing
▶
Connect the power cable C5 to connector "PWR4" on the system board (1).
▶
Install the two Retimer controllers, see "Example: Configuration with two
Retimer controllers" on page
351
.
▶
Run the PCIe SSD cables as shown.
▶
Run the PCIe SSD cables through the cable guide (2).
▶
If applicable, connect the OOB cable, see "Replacing the OOB cable" on
page 554.
▶
If applicable, install the fan bridge, see "Handling the fan bridge" on
page 92.
▶
Install the system air duct, see "Installing the system air duct" on page 68.
Hard disk drive (HDD) / solid state disk (SSD)
292 Upgrade and Maintenance Manual TX2550 M5
