Install the PRAID EP5x0i in slot 2 (1).
▶
Connect the HDD LED cable to the connector "HDD LED2" on the system
board (see close-up 2).
Example: Configuration with two Retimer controllers

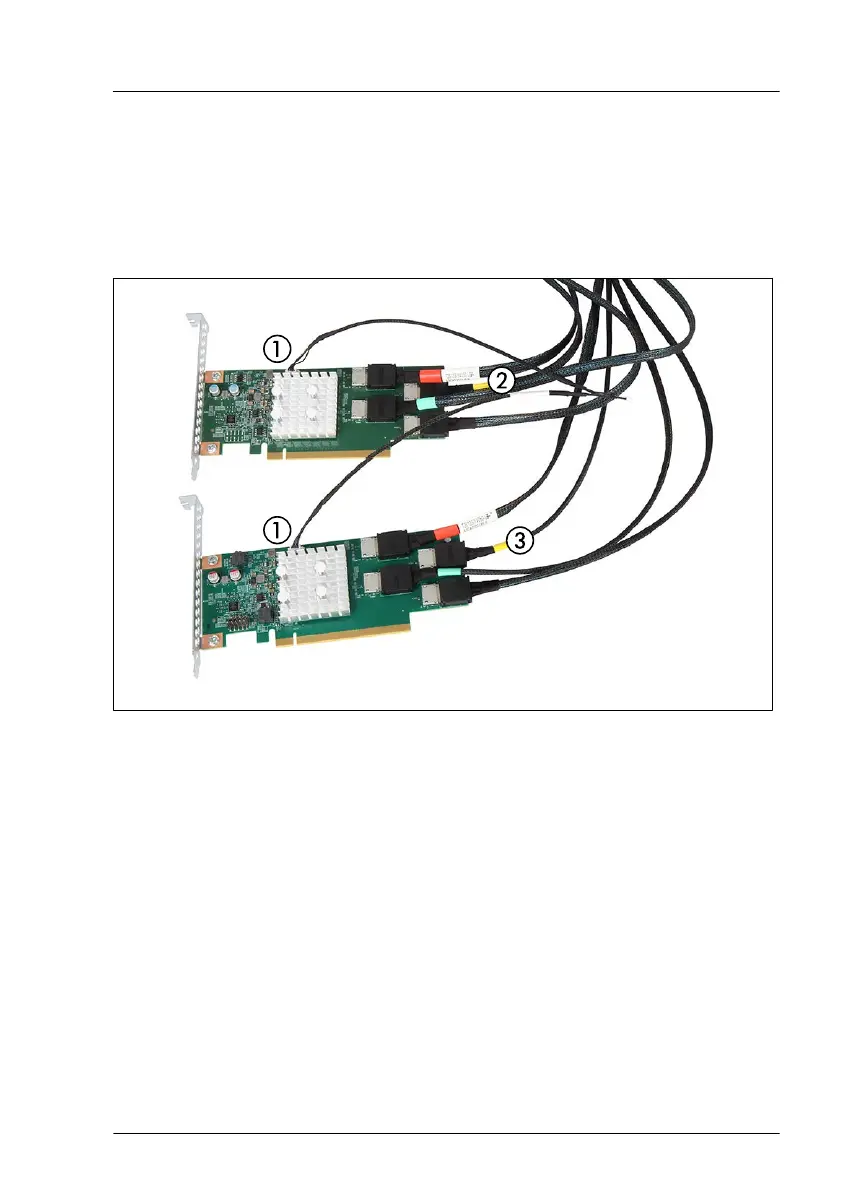

Figure 225: Connecting the cables to the Retimer controllers
▶
Connect the VPP cable to the connector "CON5" on each Retimer controller
(1).
▶
Connect the Retimer cables to the Retimer controllers (2, 3).
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 351
