Example: Configuration with one PRAID EP5x0i in slot 2

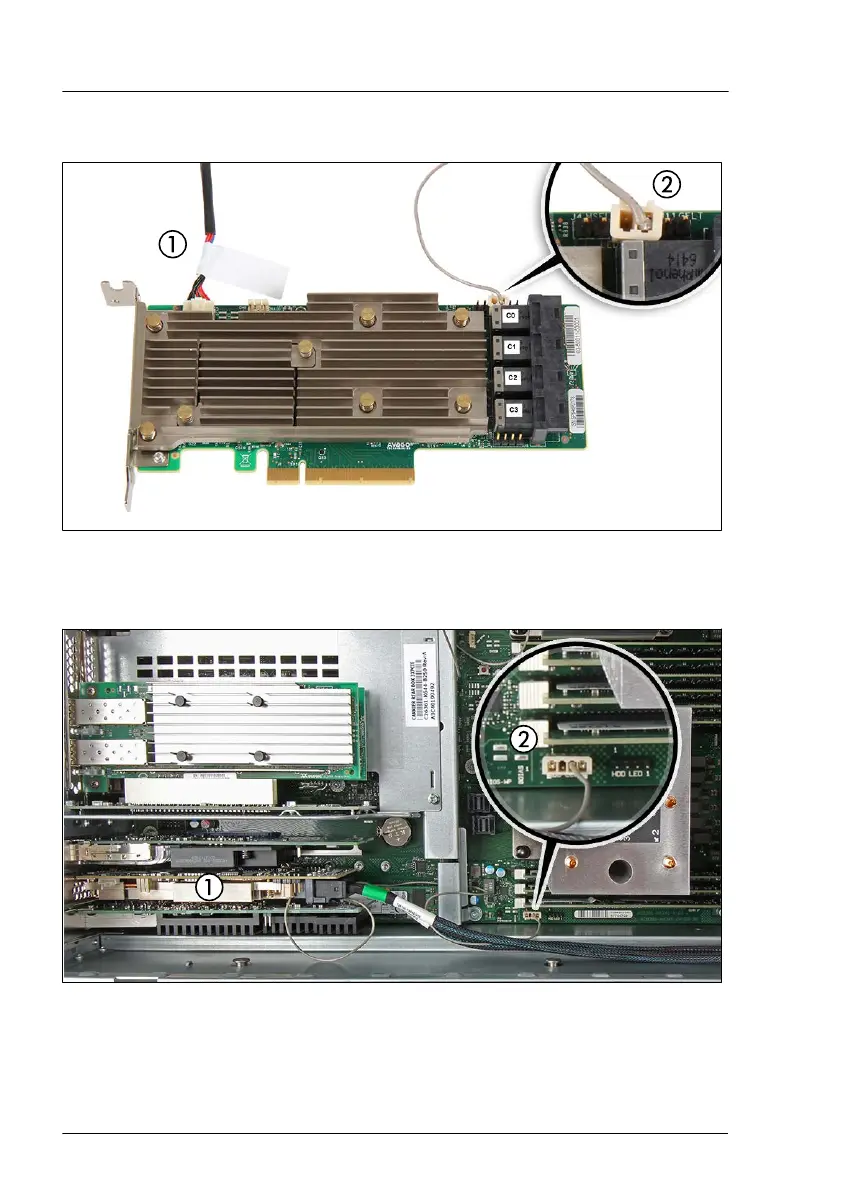

Figure 223: Connecting the cables to the PRAID EP5x0i
▶
Connect the FBU adapter cable (1) and the HDD LED cable (2).
Figure 224: Installing the PRAID EP5x0i
Expansion cards and backup units
350 Upgrade and Maintenance Manual TX2550 M5
