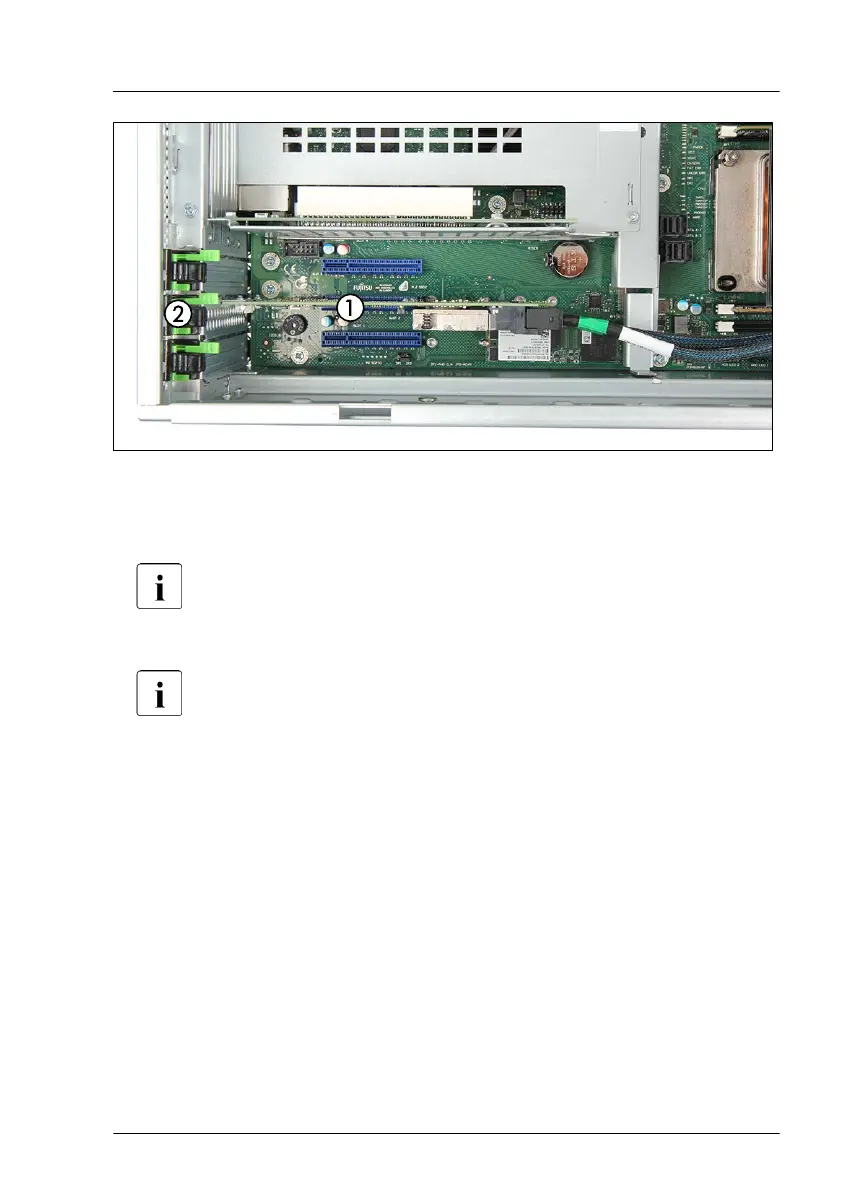

Figure 222: Installing the expansion card
▶
Carefully insert the expansion card into the desired slot and press down
firmly until it is completely fitted in the slot (1).
For slot preferences, see "Basic information" on page 324
.
▶
Fasten the expansion card with the slot cover clamp (2).
For the cable plan see "Appendix B" on page 589
.
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 349
