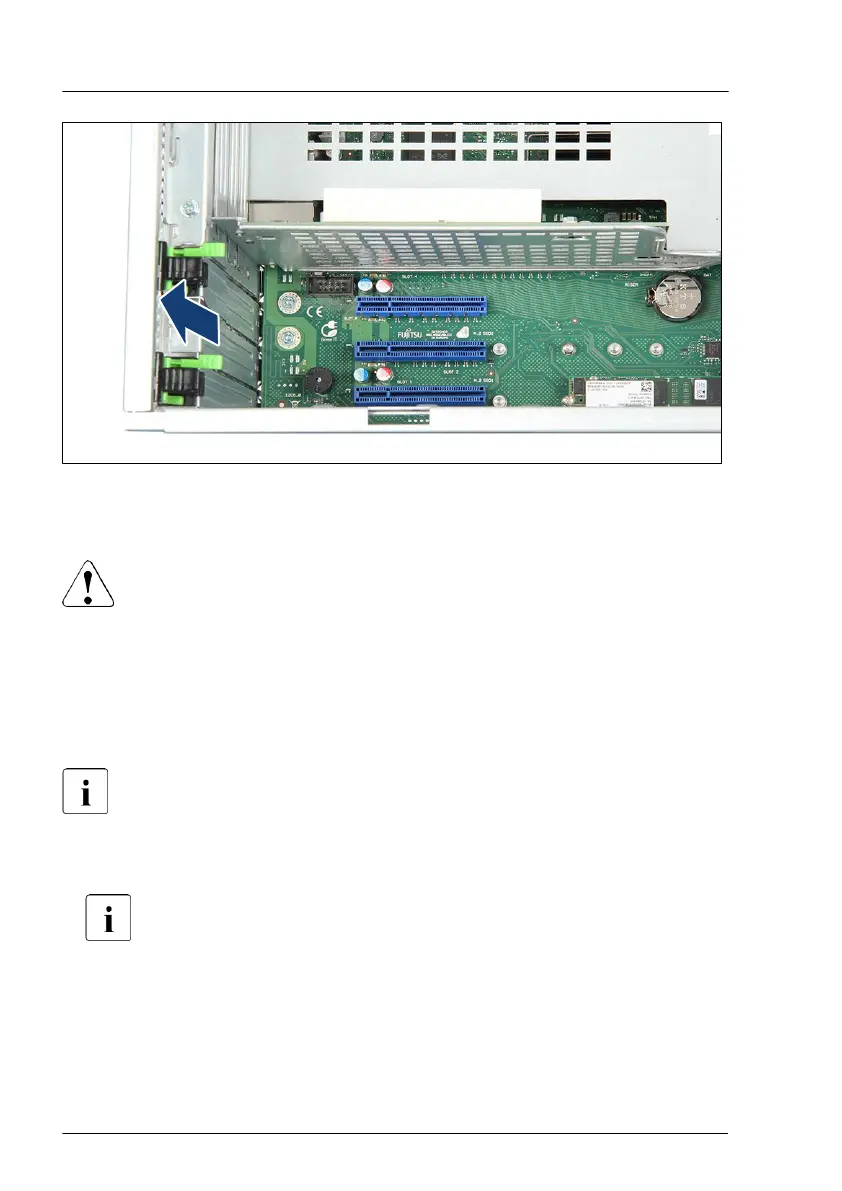

Figure 221: Removing the slot cover (B)
▶
Remove the slot cover.
CAUTION
▶
Keep the slot cover for future use.
▶
If the expansion card is removed and not replaced with a new one,
the slot cover must be reinstalled due to cooling, to comply with
applicable EMC regulations and to protect against fire.
Installing the expansion card
If an optional FBU will be installed in the system, install a TFM on the
RAID controller, before proceeding.
For more information, see "Installing a TFM" on page 372.
▶
Remove the expansion card from its protective packaging.
For more instructions regarding controller settings, see the
accompanying documentation.
▶
If applicable, attach the required slot bracket to the expansion card, see
"Installing a slot bracket" on page 328.
▶
If applicable, connect internal cables to the expansion card.
Expansion cards and backup units
348 Upgrade and Maintenance Manual TX2550 M5
