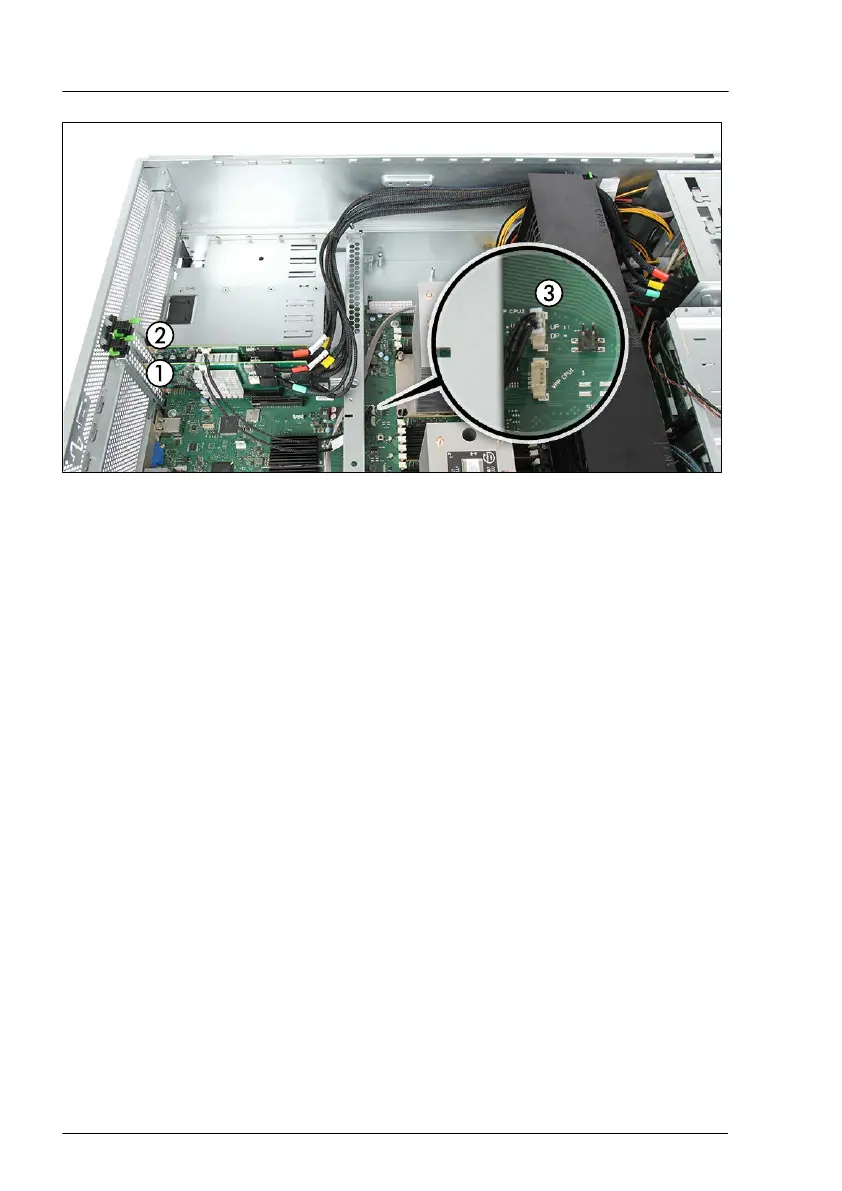

Figure 226: Installing two Retimer controllers
▶
Install one Retimer controller in slot 8 (1).
▶
Install the other Retimer controller in slot 9 (2).
▶
Connect the VPP cable to the connector "VPP CPU2" on the system board
(see close-up 3).
▶
If applicable, connect an FBU to the expansion card, see "Installing an
FBU" on page
380
.
Expansion cards and backup units
