Example: Configuration with three PRAID EP5x0i

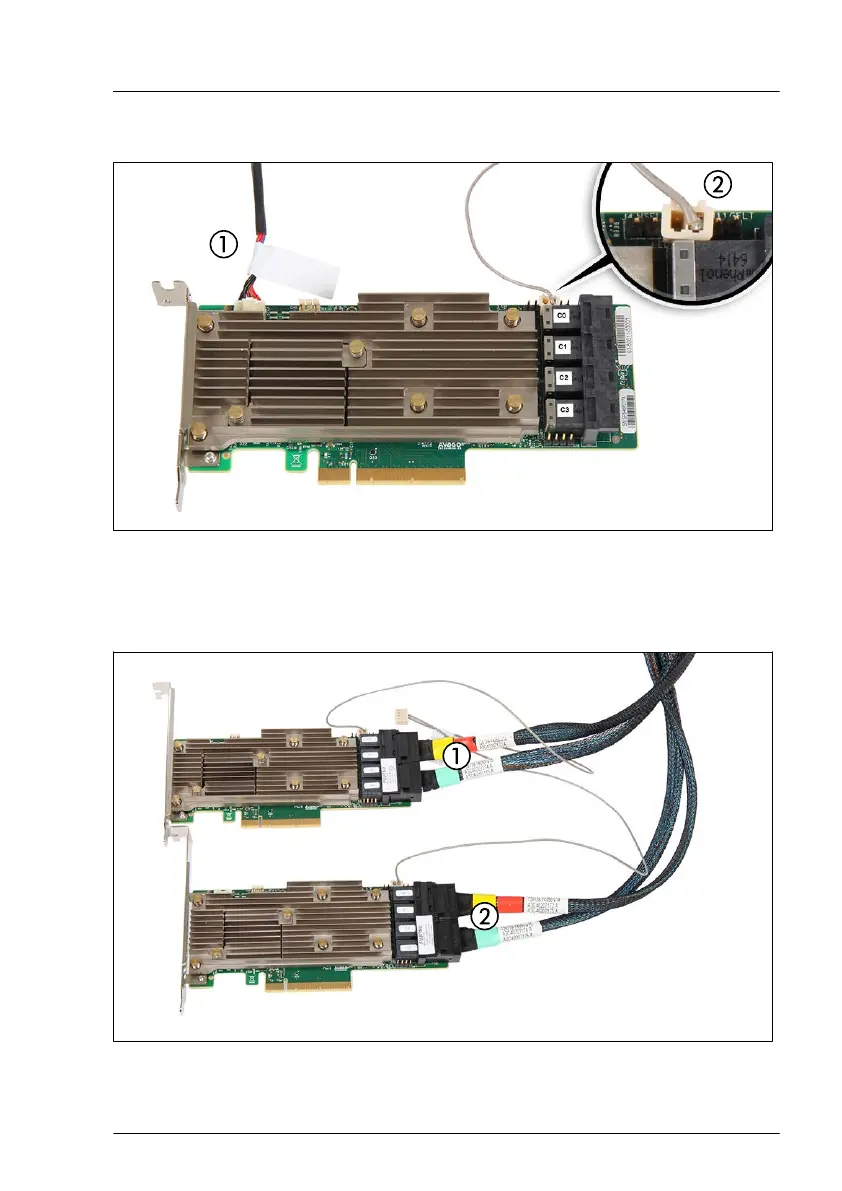

Figure 227: Connecting the cables to the PRAID EP5x0i
▶
Connect the FBU adapter cable (1) and the HDD LED cable to the
connector "J10" on each PRAID EP5x0i (2).
Figure 228: Connecting the Oculink cables to the PRAID EP5x0i
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 353
