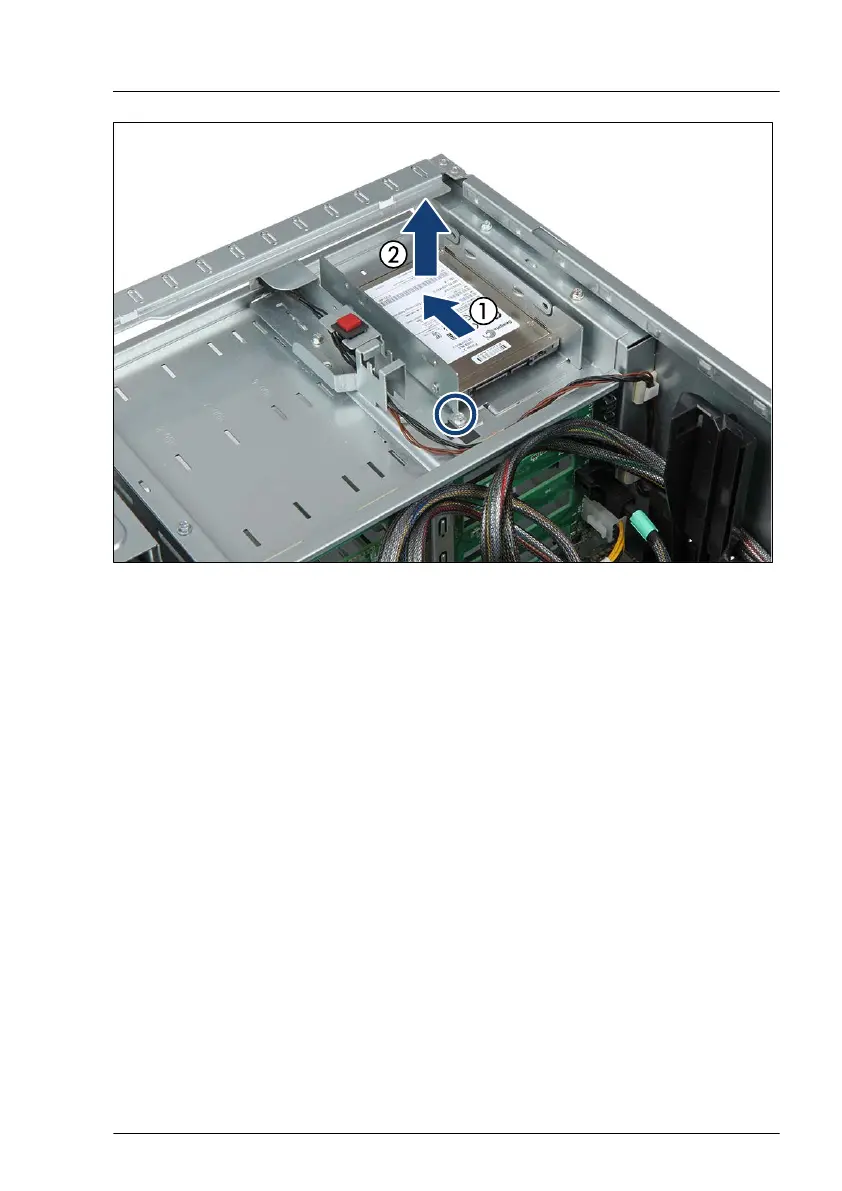

Figure 183: Removing the non-hot-plug cage
▶
Remove one screw (see circle).
▶
Push the non-hot-plug cage in the direction of the arrow (1).
▶
Remove the non-hot-plug cage from the top cover (2).
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 299
