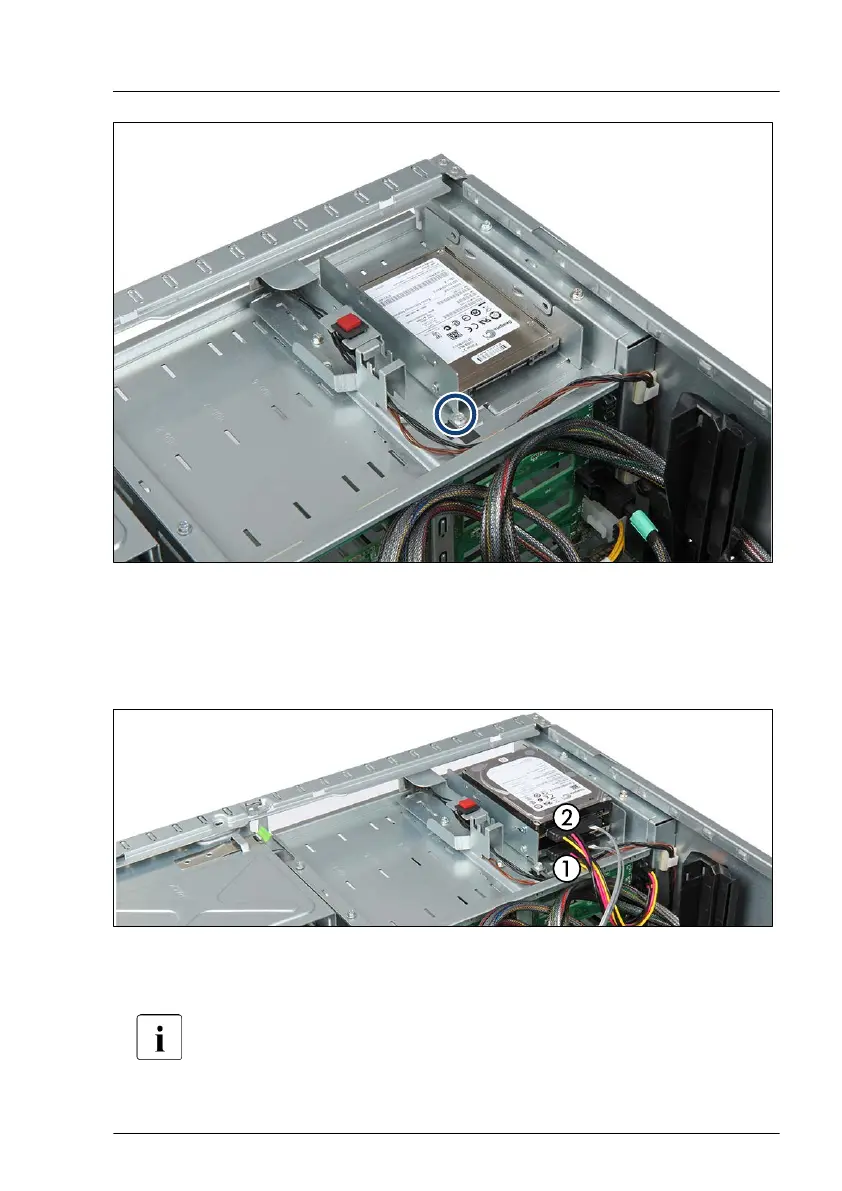

Figure 187: Installing the non-hot-plug cage (B)
▶
Fasten the non-hot-plug cage with one screw (see circle).
Connecting the cable to a non-hot-plug HDD/SSD
Figure 188: Connecting the cable to the non-hot-plug HDDs/SSDs
▶
Connect the cable(s) to the non-hot-plug HDDs/SSDs (1, 2).
For the cable plan see "Appendix B" on page 589
.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 303
