Installing the non-hot-plug cage

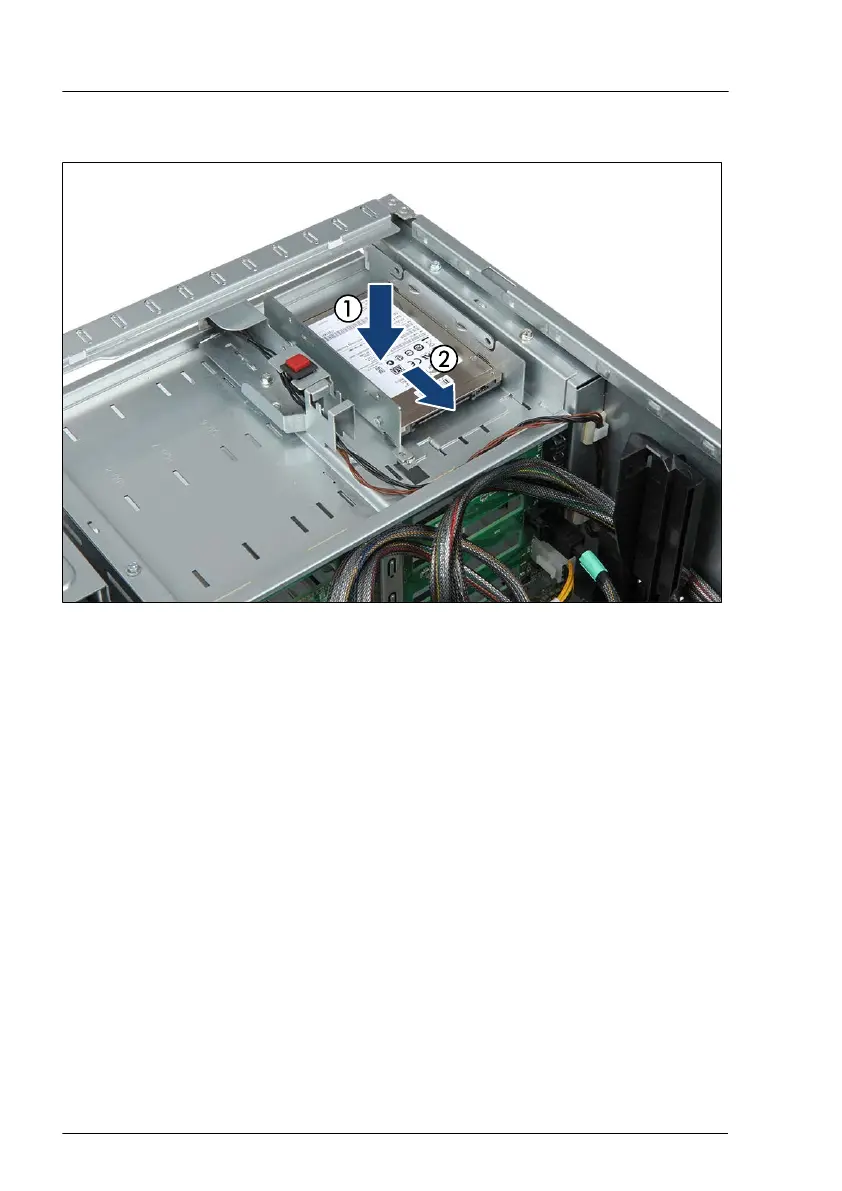

Figure 186: Installing the non-hot-plug cage (A)
▶
Place the non-hot-plug cage onto the top cover (1).
▶
Push the non-hot-plug cage in the direction of the arrow (2).
Hard disk drive (HDD) / solid state disk (SSD)
302 Upgrade and Maintenance Manual TX2550 M5
