Installing the SAS expander board holder

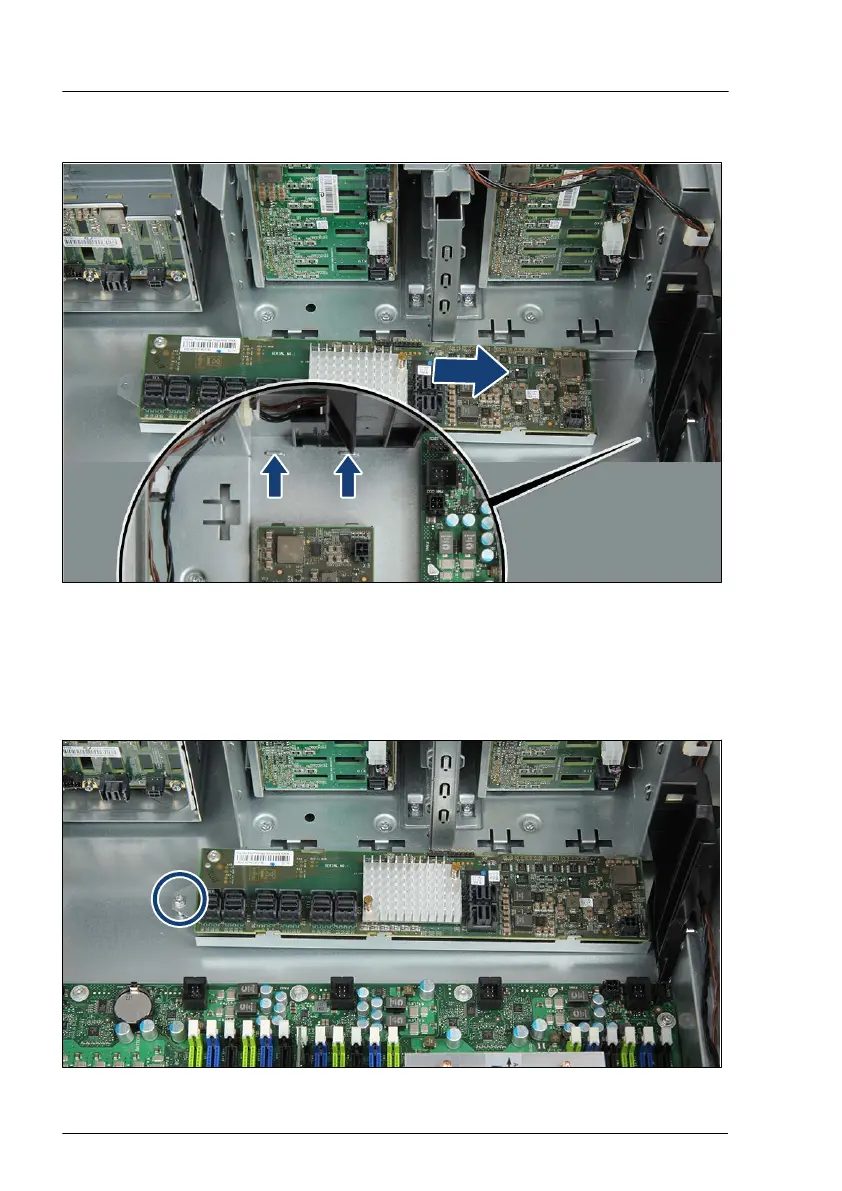

Figure 192: Installing the SAS expander board holder (A)
▶
Position the SAS expander board holder in the chassis.
▶
Push the SAS expander board holder in the direction of the arrow until it
stops on the two hooks (see close-up).
Figure 193: Installing the SAS expander board holder (B)
Hard disk drive (HDD) / solid state disk (SSD)
308 Upgrade and Maintenance Manual TX2550 M5
