Installing an expansion card in a riser module

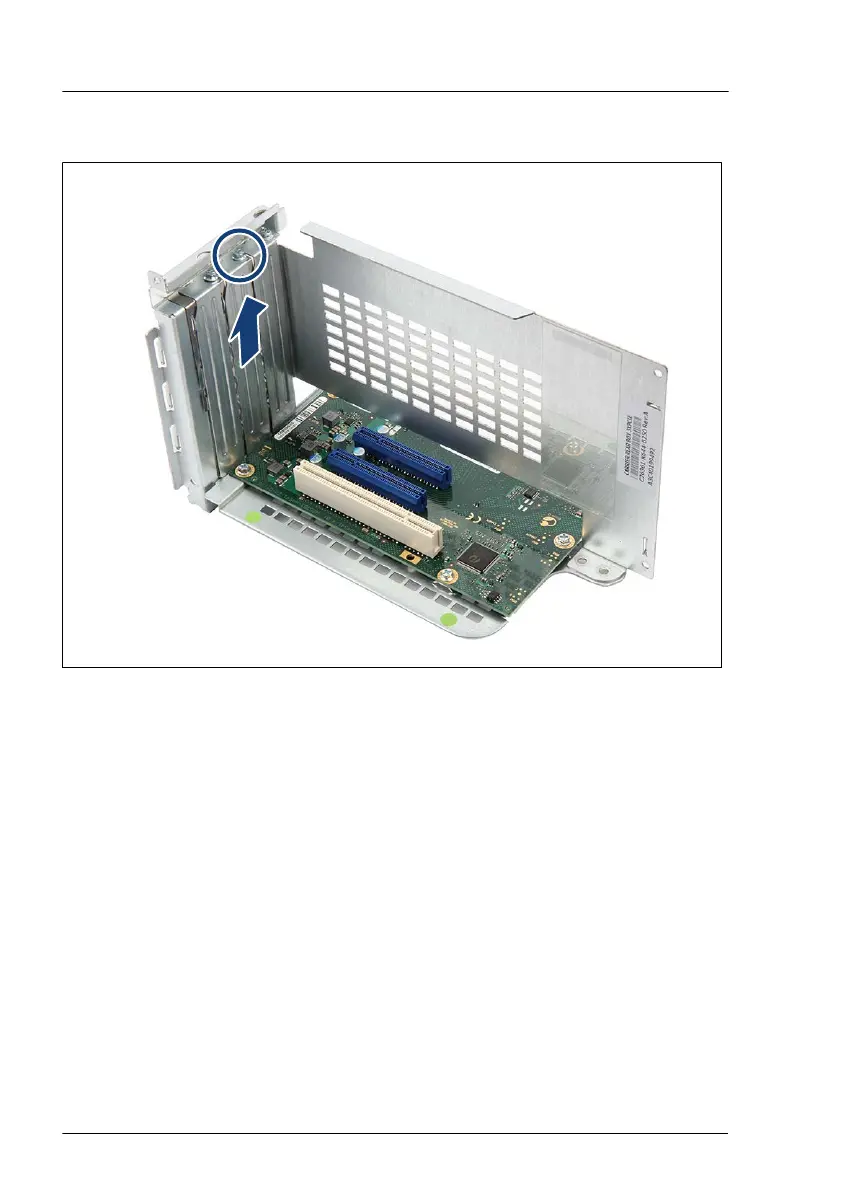

Figure 235: Removing the slot cover from the riser module
▶
Remove the screw from the desired slot cover (see circle).
▶
Remove the slot cover
.
Expansion cards and backup units
364 Upgrade and Maintenance Manual TX2550 M5
