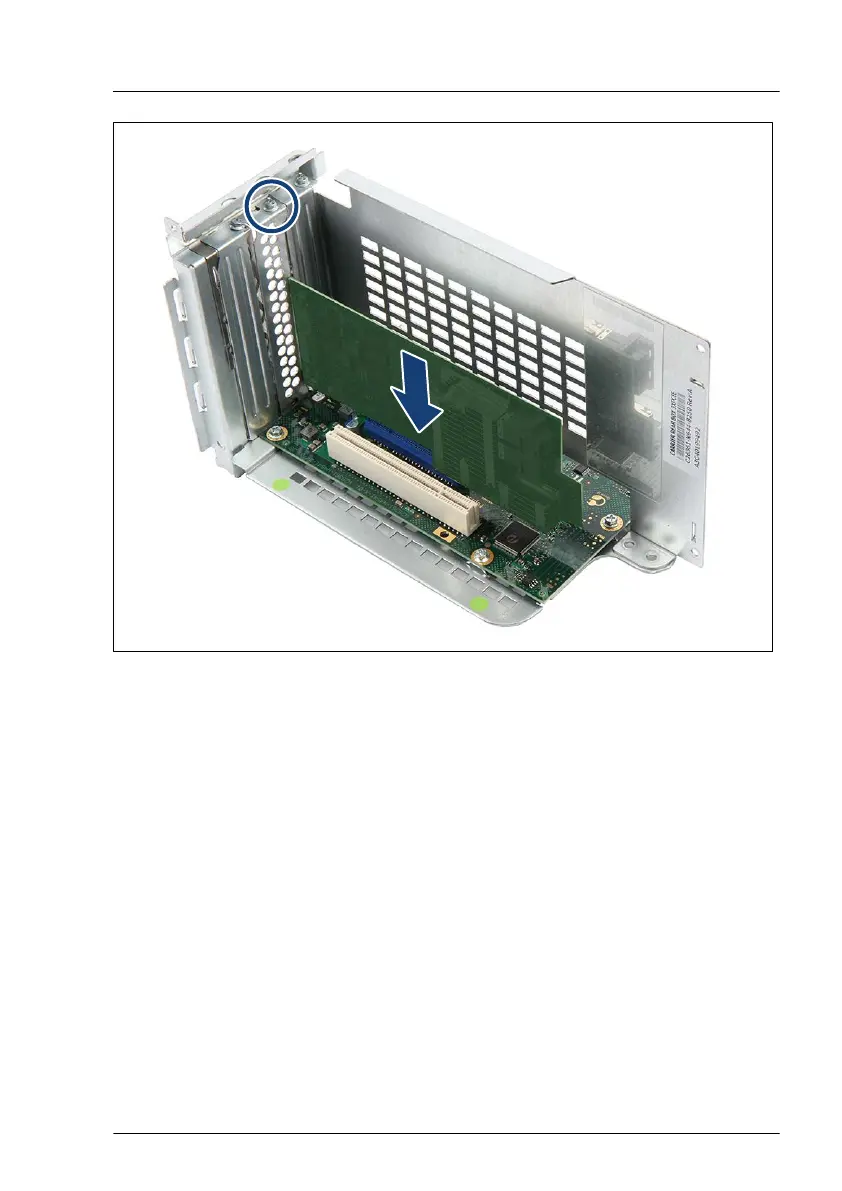

Figure 236: Installing the expansion card in the riser module
▶
Install the expansion card.
▶
Fasten the riser card with one screw (see circle).
Concluding steps
▶
"Installing the riser module" on page
87.
▶
"Reassembling" on page
68.
▶
Connect all external cables to the replaced expansion card.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
▶
"Updating expansion card firmware" on page 115.
▶
"Enabling Option ROM scan" on page 116.
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 365
